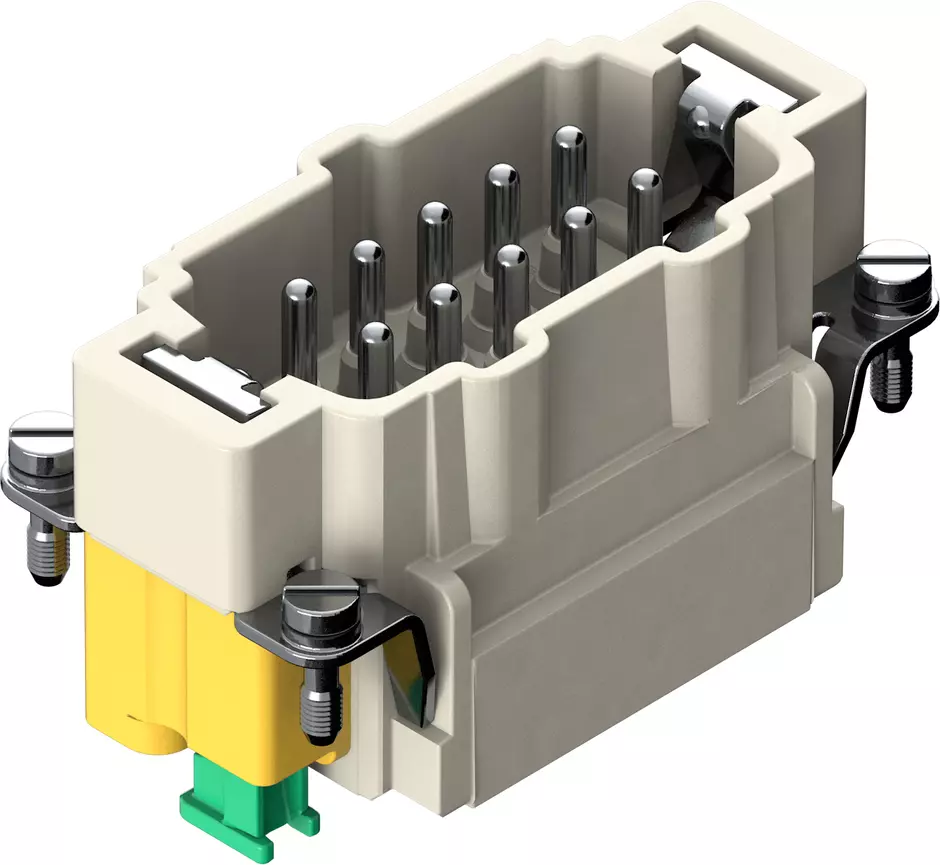

Han ES 10B PE-CC Male

Article No.: 09 33 010 2676

NewConfigurable

Image is for illustration purposes only. Please refer to product description.

NewConfigurable

Inserts

Article No.: 09 33 010 2676

to see prices and availability.

to see prices and availability.

Inserts

Cage-clamp termination

Male

Polycarbonate (PC)

RAL 7032 (pebble grey)

Rated current: ‌16 A

Size: 10 B

Contacts: 10

Conductor cross-section: 0.14 ... 2.5 mm²

Copper alloy

Silver plated

Identification

Category	Inserts
Specification	Cage clamp termination for PE connection
Series	Han^® ES

Version

Technical characteristics

Material properties

ECHA SCIP number	1e38d35d-d1be-4585-8e03-95faccd739bf
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
Material (insert)	Polycarbonate (PC)
Colour (insert)	RAL 7032 (pebble grey)
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	1
Net weight	70.08 g
Country of origin	China
GTIN	5713140186125
eCl@ss	27440205 Contact insert for industrial connectors
ETIM	EC000438
UNSPSC 24.0	39121522
