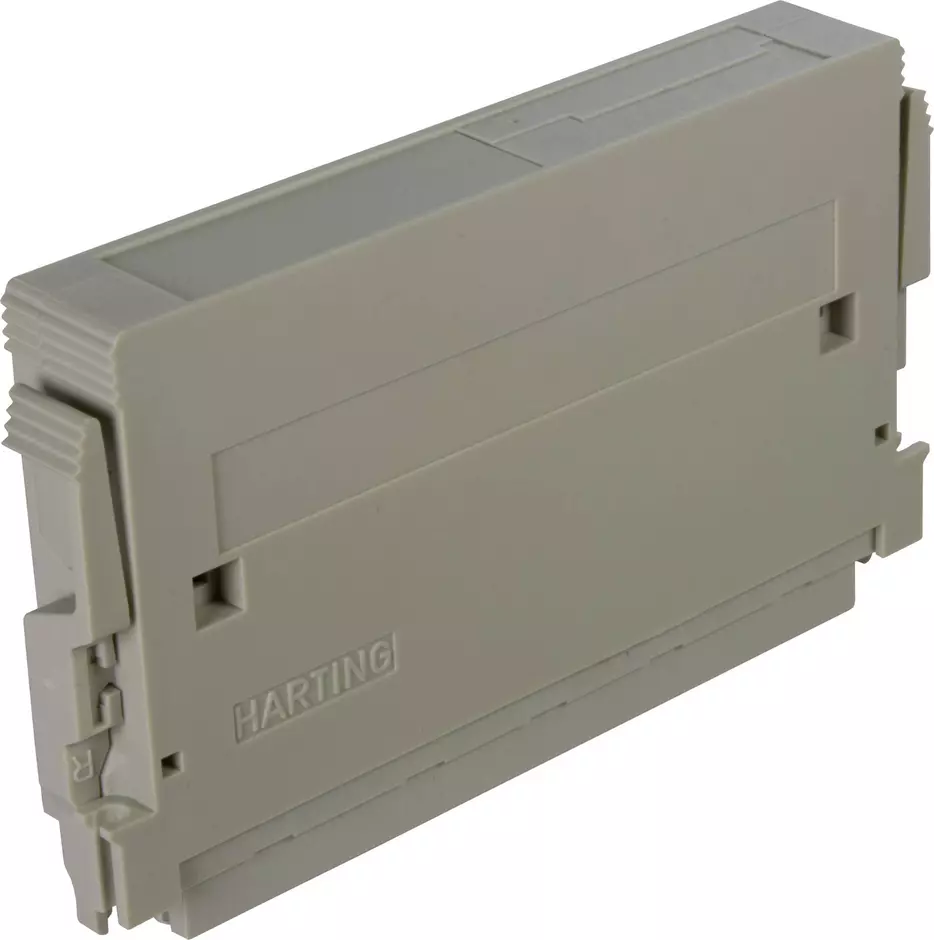

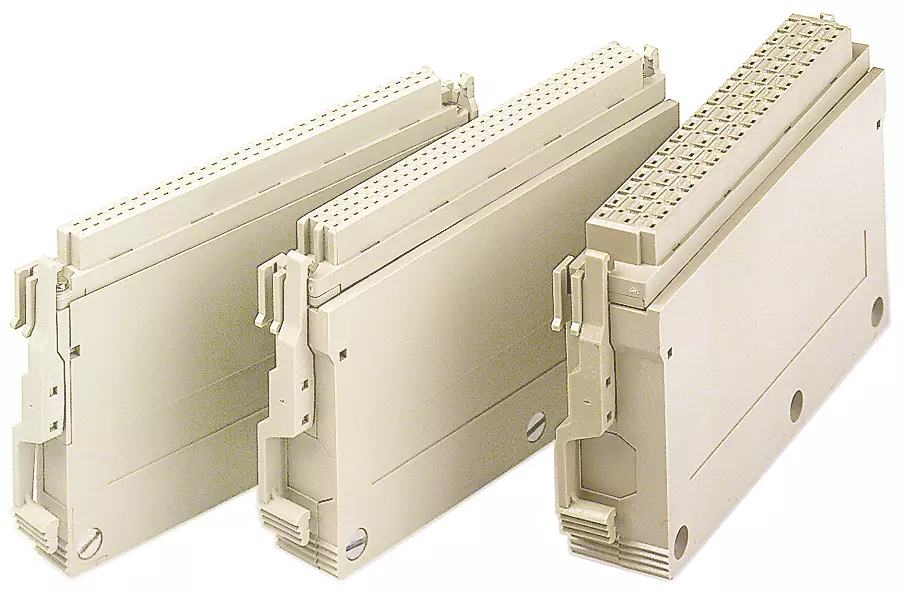

DIN-Signal shell housing B15

Article No.: 09 02 064 0502

Image is for illustration purposes only. Please refer to product description.

Shell housing

Article No.: 09 02 064 0502

to see prices and availability.

to see prices and availability.

Shell housing

15 mm

Thermoplastic, Fibre-glass reinforced

RAL 7032 (pebble grey)

Identification

Category	Accessories
Identification	Type B
Series	DIN 41612
Type of accessory	Shell housing
Description of the accessory	15 mm

Version

Locking type	Locking levers or locking screws
Version	Top/side entry
Number of cable entries	4
Cable entry	4x
Strain relief	With cable tie
2 parts	Yes
Separable	Yes

Technical characteristics

Limiting temperature	-40 ... +125 °C
Degree of protection acc. to IEC 60529	IP20
Isolation group	IIIa (175 ≤ CTI < 400)

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant
California Proposition 65 substances	Not contained
Colour (hood/housing)	RAL 7032 (pebble grey)
Material (accessories)	Thermoplastic
Material (accessories)	Fibre-glass reinforced
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Railway classification	F1/I2 acc. to NFF 16-101/102

Commercial data

European customs tariff number	85389099
Packaging size	10
Net weight	34.7 g
Country of origin	Germany
GTIN	5713140003200
eCl@ss	27440292 Connector component (accessories)
ETIM	EC002943
UNSPSC 24.0	39121400
