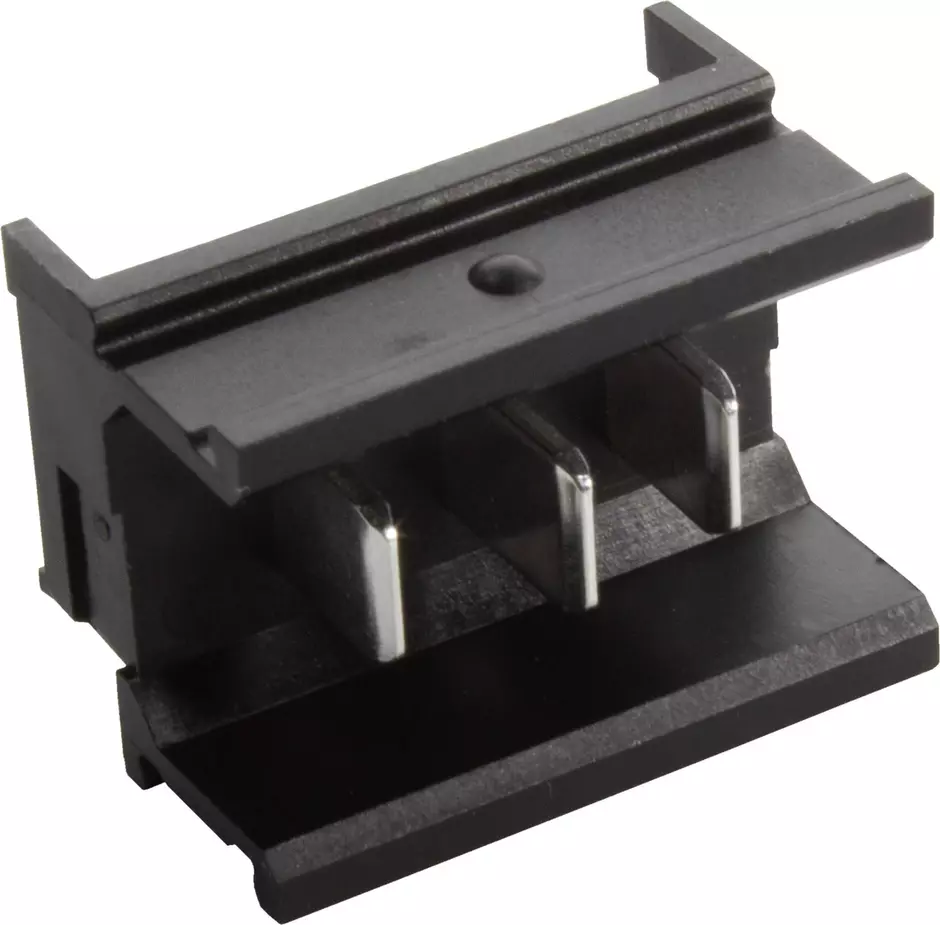

har-modular H3 module male straight

Article No.: 02 53 903 1301

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Male connector

Article No.: 02 53 903 1301

to see prices and availability.

to see prices and availability.

Male connector

Reflow soldering termination (THR), Wave soldering termination

Rated current: ‌15 A

Contacts: 3

Straight

Copper alloy

Silver plated Mating side, Sn over Ni Termination side

Performance level: 1, acc. to IEC 60603-2

Polyamide (PA)

Black

Identification

Version

Termination method	Reflow soldering termination (THR)
Termination method	Wave soldering termination
Connection type	Mezzanine
Number of contacts	3
Leading contact on position	2
Termination length	4.8 mm
Width of the module	20.32 mm

Technical characteristics

Performance level	1
Performance level	acc. to IEC 60603-2
Hot plugging	No
Contact spacing (mating side)	5.08 mm
Rated current	15 A
Clearance distance	‌4 mm in the module
Clearance distance	‌4.4 mm to module edge
Creepage distance	‌4.4 mm in the module
Creepage distance	‌4.6 mm to module edge
Insulation resistance	>10¹¹ Ω
Contact resistance	8 mΩ
Limiting temperature	[-55] ... [+125 °C] (during reflow soldering max. +240 °C for 15 s)
Insertion force	18 N
Withdrawal force	12 N
Mating cycles	500
Test voltage Ur.m.s.	[2,5 kV]
Isolation group	I (600 ≤ CTI)
Moisture Sensitivity Level (MSL)	1 acc. to ECA/IPC/JEDEC J-STD-020D

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R26
ELV status	compliant
California Proposition 65 substances	Not contained
Material (insert)	Polyamide (PA)
Colour (insert)	Black
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated Mating side
Surface (contacts)	Sn over Ni Termination side
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	10
Net weight	2.78 g
Country of origin	Romania
GTIN	5713140197992
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
