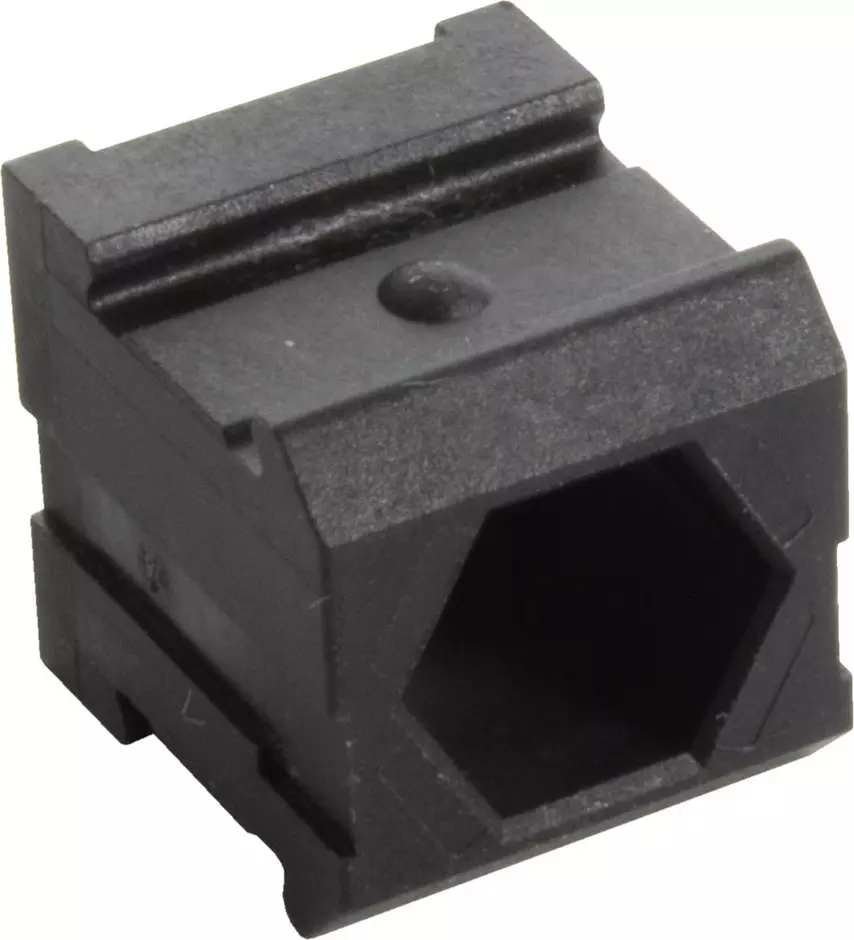

har-modular T-module female straight

Article No.: 02 52 900 0003

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Female connector

Article No.: 02 52 900 0003

to see prices and availability.

to see prices and availability.

Female connector

Straight

Polyamide (PA)

Black

Identification

Version

Connection type	Motherboard to daughtercard
Connection type	Mezzanine
Width of the module	10.16 mm

Technical characteristics

Hot plugging	No
Insulation resistance	>10¹¹ Ω
Limiting temperature	[-55] ... [+125 °C]
Mating cycles	500
Isolation group	I (600 ≤ CTI)
Moisture Sensitivity Level (MSL)	1 acc. to ECA/IPC/JEDEC J-STD-020D

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R26
ELV status	compliant
California Proposition 65 substances	Not contained
Material (insert)	Polyamide (PA)
Colour (insert)	Black
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	20
Net weight	1.28 g
Country of origin	Romania
GTIN	5713140197855
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
