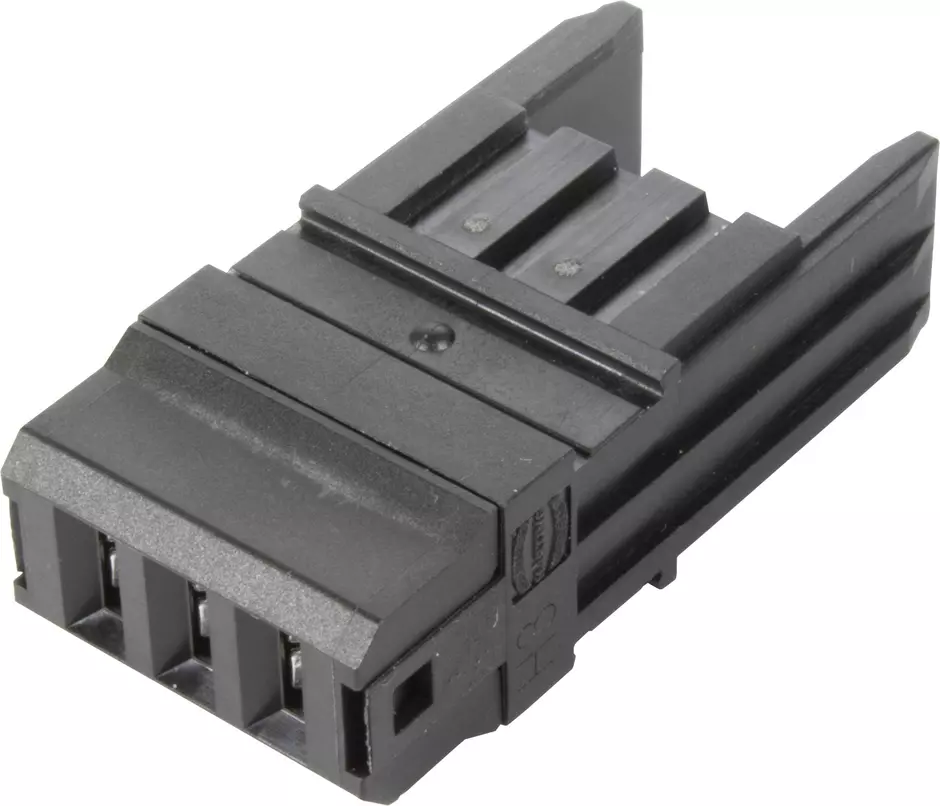

har-modular H3 module female faston

Article No.: 02 54 903 1301

New

Image is for illustration purposes only. Please refer to product description.

New

Cable connector

Article No.: 02 54 903 1301

to see prices and availability.

to see prices and availability.

Cable connector

Female connector

Faston

Rated current: ‌15 A

Contacts: 3

Straight

Copper alloy

Silver plated

Polyamide (PA)

Black

Identification

Version

Technical characteristics

Hot plugging	No
Rated current	15 A
Clearance distance	‌4 mm in the module
	‌4 mm to module edge
	‌5.5 mm to touchable surface
Creepage distance	‌4 mm in the module
	‌4 mm to module edge
	‌6.4 mm to touchable surface
Insulation resistance	>10¹¹ Ω
Limiting temperature	[-55] ... [+125 °C]
Mating cycles	500
Degree of protection acc. to IEC 60529	IP20
Test voltage Ur.m.s.	1.55 kV (contact-contact)
Test voltage Ur.m.s.	2.21 kV (Contact - accessible surfaces of cable connector) acc. to IEC 61984
Isolation group	I (600 ≤ CTI)

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant
California Proposition 65 substances	Not contained
Material (insert)	Polyamide (PA)
Colour (insert)	Black
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Railway classification	F1/I2 acc. to NFF 16-101/102

Commercial data

European customs tariff number	85366990
Packaging size	20
Net weight	8.93 g
Country of origin	Romania
GTIN	5713140427723
eCl@ss	27460201 PCB connector (board connector)
UNSPSC 24.0	39121415
