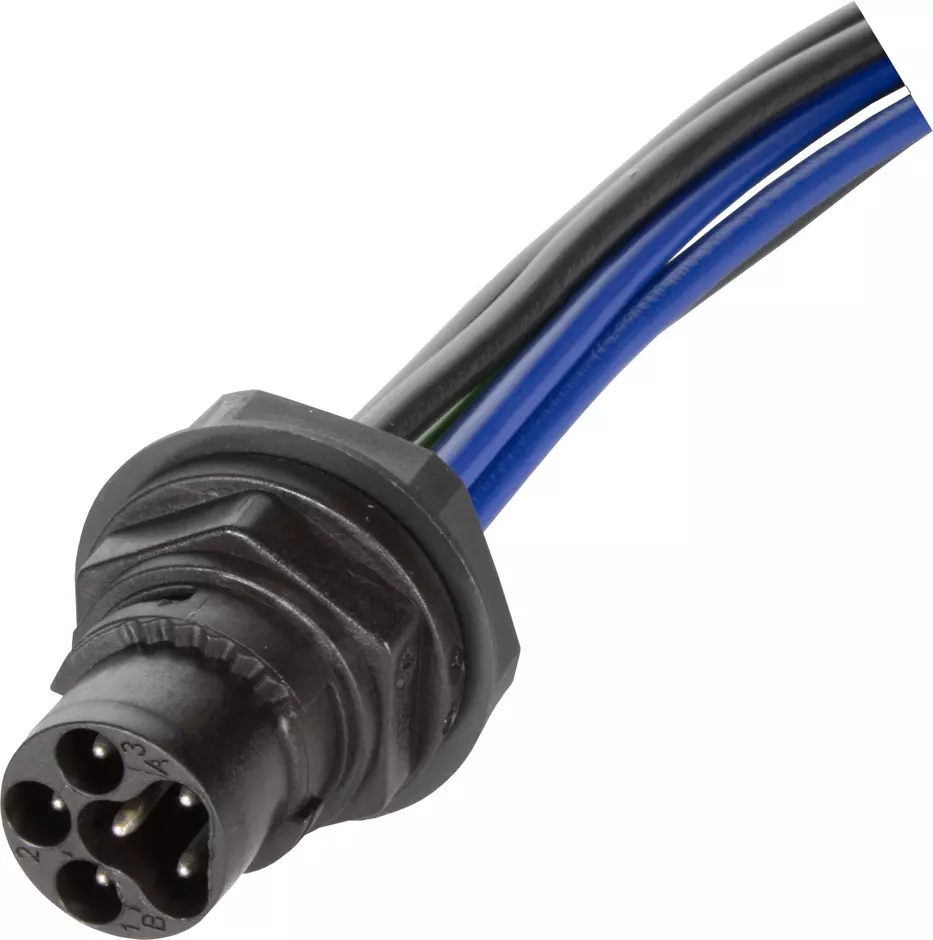

Size15-PFT-CRIMP-6P-M-1.0

Article No.: 21 46 359 5610

Image is for illustration purposes only. Please refer to product description.

Panel feed through

Article No.: 21 46 359 5610

to see prices and availability.

to see prices and availability.

Panel feed through

With conductors, for front mounting

‌100 cm

This product is not orderable anymore.

You can use the successor.

Identification

Version

Technical characteristics

Conductor length	100 cm
Conductor cross-section (mm²)	2.5 mm²
Conductor cross-section (AWG)	AWG 14
Rated voltage (signal)	63 V AC/DC
Rated voltage (power)	630 V
Pollution degree	3
Rated current (signal)	10 A
Rated impulse voltage (signal)	1.5 kV
Pollution degree (signal)	3
Rated current (power)	16 A
Rated impulse voltage (power)	6 kV
Pollution degree (power)	3
Limiting temperature	-40 ... +70 °C
Mating cycles	500
Degree of protection acc. to IEC 60529	IP67
Isolation group	I (600 ≤ CTI)

Material properties

ECHA SCIP number	0d7d3693-d625-47ab-934a-d241bf72c86e
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (insert)	Polyamide (PA)
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
Material (hood/housing)	Polyamide (PA)

Specifications and approvals

PROFINET	No
Specifications	IEC 61076-2-116

Commercial data

European customs tariff number	85366990
Packaging size	1
Net weight	228 g
Country of origin	Czechia
GTIN	5713140229112
eCl@ss	27440103 Sensor-actuator connector chassis (sensor technology acturator)
UNSPSC 24.0	39121413
