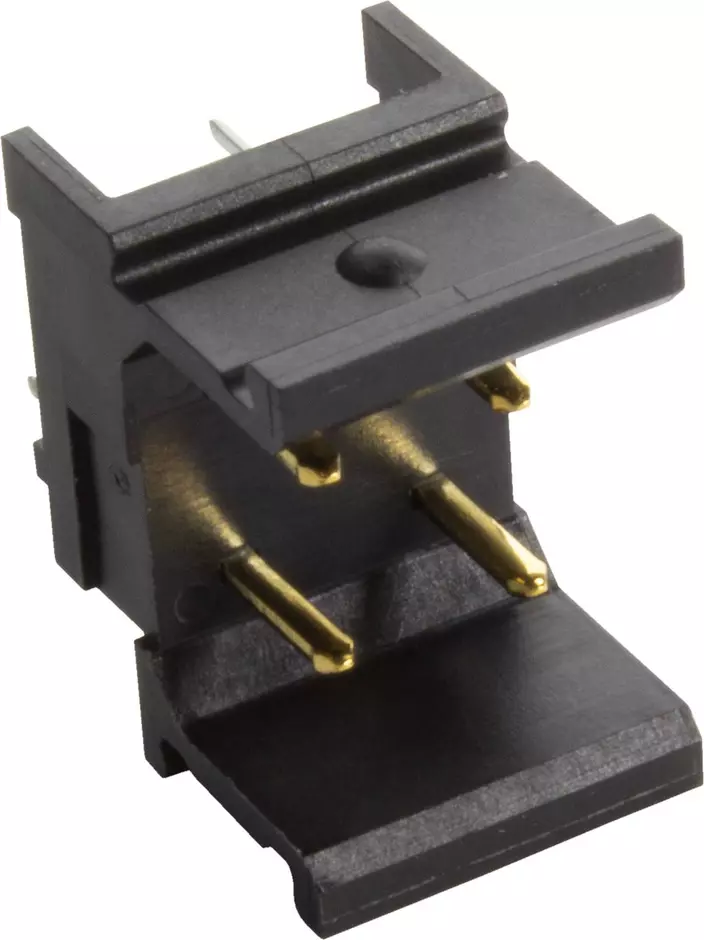

har-modular F4 module male straight Pa1

Article No.: 02 53 904 1202

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Male connector

Article No.: 02 53 904 1202

to see prices and availability.

to see prices and availability.

Male connector

Reflow soldering termination (THR), Wave soldering termination

Rated current: ‌6 A

Contacts: 4

Straight

Copper alloy

Noble metal over Ni Mating side, Sn over Ni Termination side

Performance level: 1, acc. to IEC 60603-2

Polyamide (PA)

Black

Identification

Version

Termination method	Reflow soldering termination (THR)
Termination method	Wave soldering termination
Connection type	Mezzanine
Number of contacts	4
Contact configuration	Rows a and c, positions 1 and 3
Leading contact on position	a1
Termination length	4.8 mm
Width of the module	10.16 mm

Technical characteristics

Performance level	1
Performance level	acc. to IEC 60603-2
Hot plugging	No
Contact spacing (mating side)	5.08 mm
Rated current	6 A
Clearance distance	‌3 mm in the module
Clearance distance	‌1.6 mm to module edge
Creepage distance	‌3 mm in the module
Creepage distance	‌1.6 mm to module edge
Insulation resistance	>10¹¹ Ω
Contact resistance	15 mΩ
Limiting temperature	-55 ... +125 °C (during reflow soldering max. +240 °C for 15 s)
Insertion force	5 N
Withdrawal force	5 N
Mating cycles	500
Test voltage Ur.m.s.	1.55 kV
Isolation group	I (600 ≤ CTI)
Moisture Sensitivity Level (MSL)	1 acc. to ECA/IPC/JEDEC J-STD-020D

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R26
ELV status	compliant
California Proposition 65 substances	Not contained
Material (insert)	Polyamide (PA)
Colour (insert)	Black
Material (contacts)	Copper alloy
Surface (contacts)	Noble metal over Ni Mating side
Surface (contacts)	Sn over Ni Termination side
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	20
Net weight	2 g
Country of origin	Romania
GTIN	5713140197985
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
