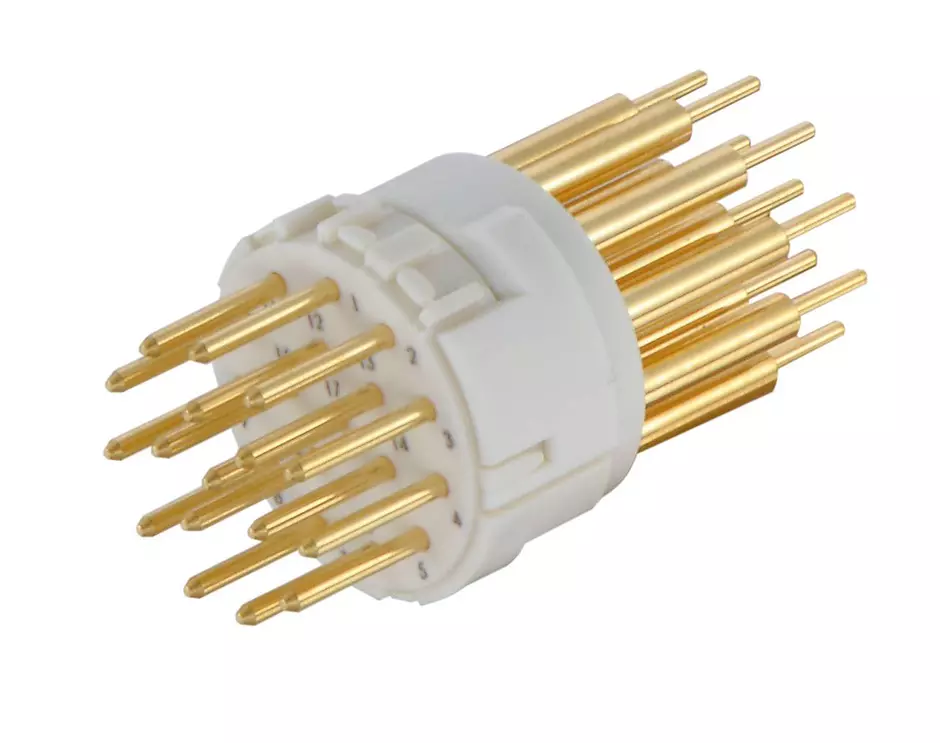

M23 17 Male -soldered contact

Article No.: 09 15 117 2603

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Inserts

Article No.: 09 15 117 2603

to see prices and availability.

to see prices and availability.

Inserts

PCB solder termination

Male

Polyamide (PA)

White

Rated current: ‌8 A

Contacts: 17

Copper alloy

Gold plated

Identification

Version

Termination method	PCB solder termination
Gender	Male
With wire protection	No
Number of contacts	17
Details	Suitable for bulkhead mounted housings 09 15 100 0301, 0302, 0305, 0306 and 0307 only!

Technical characteristics

Material properties

ECHA SCIP number	052d6da0-30ef-44e8-bbe4-e75780521d22
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
Material (insert)	Polyamide (PA)
Colour (insert)	White
Material (contacts)	Copper alloy
Surface (contacts)	Gold plated
Material flammability class acc. to UL 94	V-0

Specifications and approvals

UL / CSA	UL 1977 ECBT2.E235076

Commercial data

European customs tariff number	85366990
Packaging size	5
Net weight	12.2 g
Country of origin	Germany
GTIN	5713140187320
eCl@ss	27440223 Contact insert for circular connectors
ETIM	EC003557
UNSPSC 24.0	39121421
