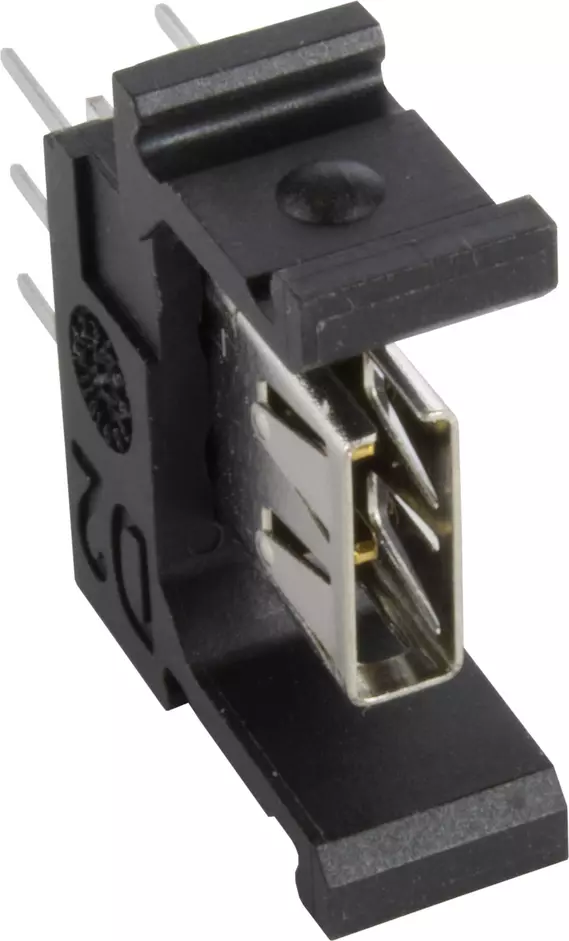

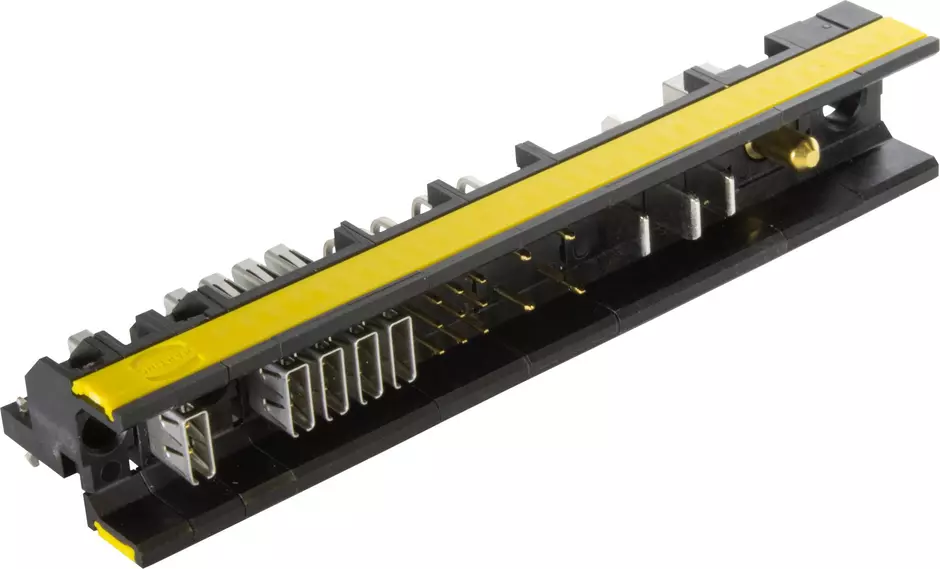

har-modular D2 data module male str 3mm

Article No.: 02 53 902 1501

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Male connector

Article No.: 02 53 902 1501

to see prices and availability.

to see prices and availability.

Male connector

Solder termination

Contacts: 2

Straight

Copper alloy

Noble metal over Pd/Ni over Ni Mating side, Sn over Ni Termination side, Ni Mating side (shielding), Sn over Ni Termination side (shielding)

Performance level: 1

Polyamide (PA)

Black

Identification

Version

Termination method	Solder termination
Shielding	Fully shielded, 360° shielding contact
Connection type	Mezzanine
Number of contacts	2
Contact configuration	r+t
Termination length	3 mm
Width of the module	5.08 mm

Technical characteristics

Performance level	1
Hot plugging	No
Clearance distance	‌2.05 mm in the module
Clearance distance	‌0.25 mm to module edge
Creepage distance	‌2.05 mm in the module
Creepage distance	‌0.25 mm to module edge
Insulation resistance	>10¹¹ Ω
Contact resistance	20 mΩ
Shielding resistance	100 mΩ
Impedance differential	100 Ω
Limiting temperature	-55 ... +125 °C (during reflow soldering max. +240 °C for 15 s)
Insertion force	10 N
Withdrawal force	10 N
Mating cycles	500
Transmission characteristics	10GBASE-KR Ethernet
	100GBASE-KR4 Ethernet
	PCIe Gen 2
	PCIe Gen 3
	PCIe Gen 4
	USB 3.0
	USB 3.1
	Hypertransport 3
	SAS 2.0
	SAS 3.0
	Infiniband FDR
	SATA 3.2
Data rate	10 Mbit/s
	100 Mbit/s
	1 Gbit/s
	5 Gbit/s
	10 Gbit/s
	25 Gbit/s

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R26
ELV status	compliant
California Proposition 65 substances	Not contained
Material (insert)	Polyamide (PA)
Colour (insert)	Black
Material (contacts)	Copper alloy
Surface (contacts)	Noble metal over Pd/Ni over Ni Mating side
	Sn over Ni Termination side
	Ni Mating side (shielding)
	Sn over Ni Termination side (shielding)
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Railway classification	F1/I2 acc. to NFF 16-101/102

Commercial data

European customs tariff number	85366990
Packaging size	40
Net weight	0.01 g
Country of origin	Romania
GTIN	5713140573499
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
