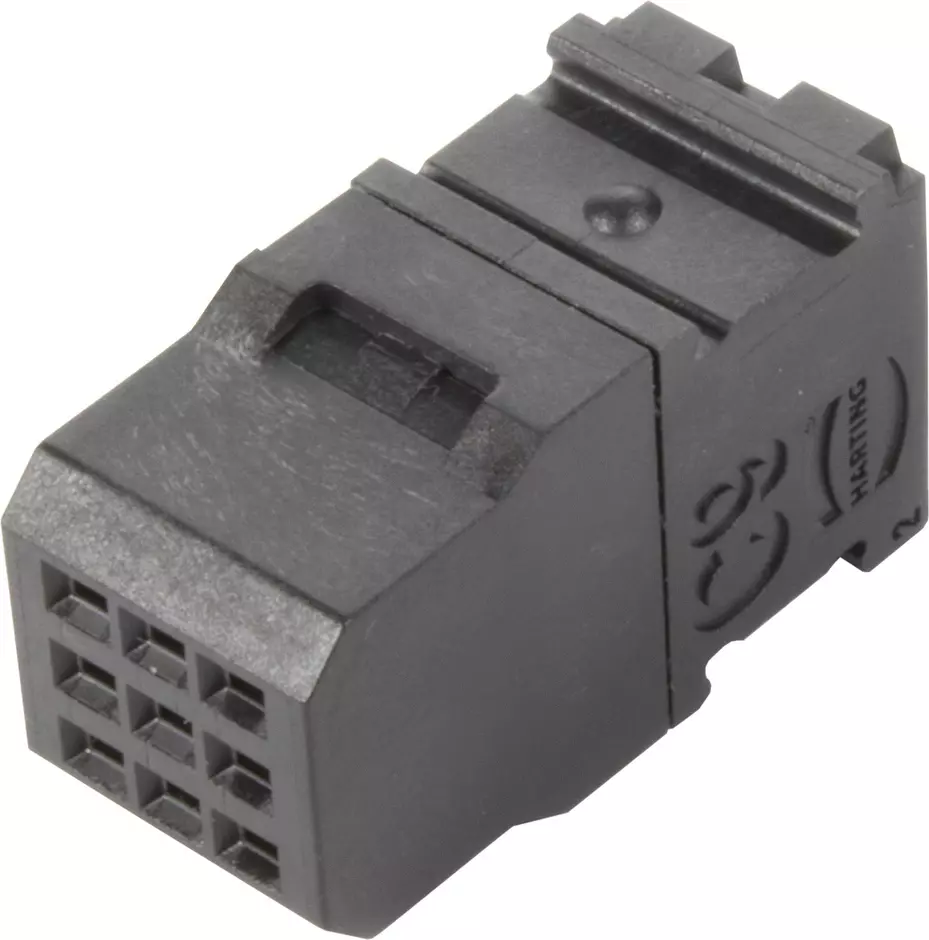

har-modular C9 module female crimp

Article No.: 02 54 909 0101

New

Image is for illustration purposes only. Please refer to product description.

New

Cable connector

Article No.: 02 54 909 0101

to see prices and availability.

to see prices and availability.

Cable connector

Female connector

Crimp termination

Contacts: 9

Straight

Polyamide (PA)

Black

Identification

Version

Termination method	Crimp termination
Connection type	PCB to cable
Number of contacts	9
Details	Please order crimp contacts separately.
Width of the module	10.16 mm

Technical characteristics

Hot plugging	No
Clearance distance	‌1 mm in the module
	‌1.8 mm to module edge
	‌1.6 mm to touchable surface
Creepage distance	‌1 mm in the module
	‌1.8 mm to module edge
	‌1.6 mm to touchable surface
Insulation resistance	>10¹¹ Ω
Limiting temperature	[-55] ... [+125 °C]
Mating cycles	500
Degree of protection acc. to IEC 60529	IP20
Test voltage Ur.m.s.	1 kV (contact-contact)
Test voltage Ur.m.s.	1.39 kV (Contact - accessible surfaces of cable connector) acc. to IEC 61984
Isolation group	I (600 ≤ CTI)

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant
California Proposition 65 substances	Not contained
Material (insert)	Polyamide (PA)
Colour (insert)	Black
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Railway classification	F1/I2 acc. to NFF 16-101/102

Commercial data

European customs tariff number	85366990
Packaging size	40
Net weight	2.69 g
Country of origin	Romania
GTIN	5713140442641
eCl@ss	27460201 PCB connector (board connector)
UNSPSC 24.0	39121415
