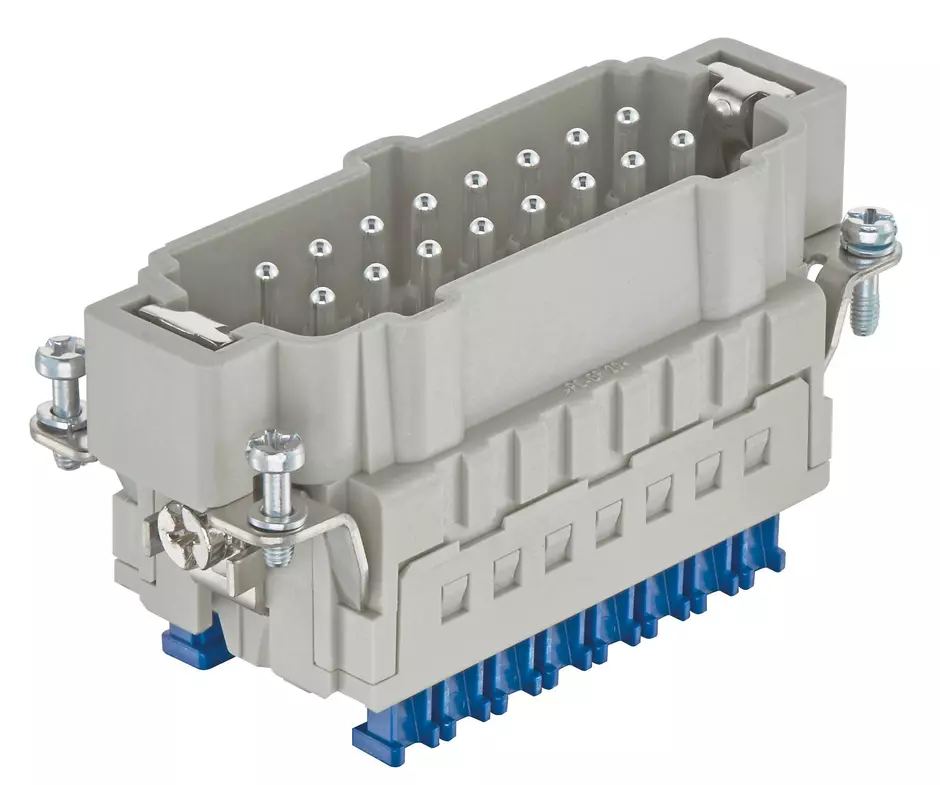

Han 16ES Press - M

Article No.: 09 33 016 2648

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Inserts

Article No.: 09 33 016 2648

to see prices and availability.

to see prices and availability.

Inserts

Cage-clamp termination

Male

Polycarbonate (PC)

RAL 7032 (pebble grey)

Rated current: ‌16 A

Size: 16 B

Contacts: 16

Conductor cross-section: 0.14 ... 2.5 mm²

Copper alloy

Silver plated

Identification

Category	Inserts
Series	Han^® ES Press

Version

Termination method	Cage-clamp termination
Gender	Male
Size	16 B
With wire protection	No
Number of contacts	16
PE contact	Yes
Details	Blue slide
Details	for hoods/housings high construction only

Technical characteristics

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant
California Proposition 65 substances	Yes
REACH SVHC substances	Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (insert)	Polycarbonate (PC)
Colour (insert)	RAL 7032 (pebble grey)
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
Colour (accessories)	Blue
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	1
Net weight	110 g
Country of origin	Germany
GTIN	5713140572089
eCl@ss	27440205 Contact insert for industrial connectors
UNSPSC 24.0	39121522
