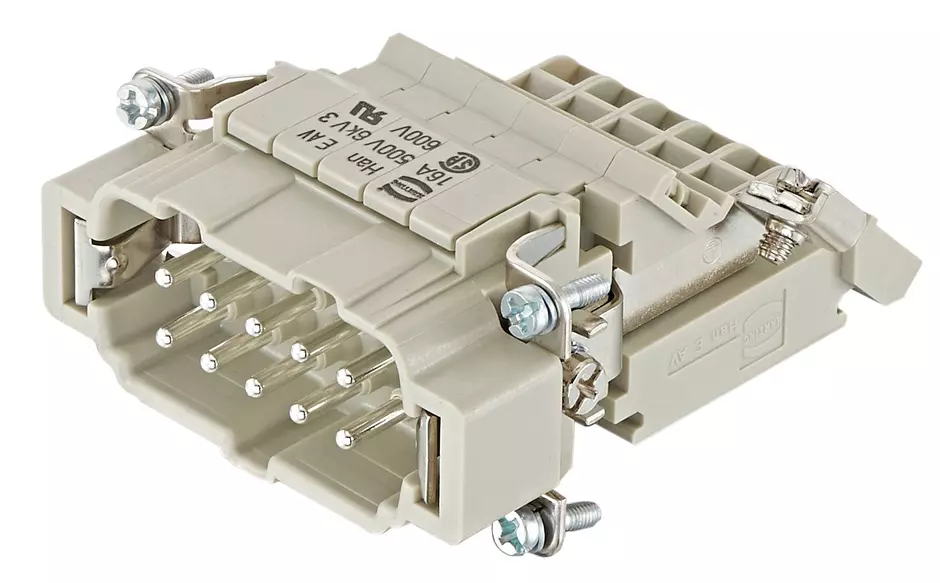

Han E AV 10 Pos. M Insert Term. Block ri

Article No.: 09 33 010 4636

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Inserts

Article No.: 09 33 010 4636

to see prices and availability.

to see prices and availability.

Inserts

Terminal block connector

Screw termination

Male

Polycarbonate (PC)

RAL 7032 (pebble grey)

Rated current: ‌16 A

Size: 10 B

Contacts: 10

Conductor cross-section: 0.2 ... 2.5 mm²

Copper alloy

Silver plated

Identification

Version

Technical characteristics

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (insert)	Polycarbonate (PC)
Colour (insert)	RAL 7032 (pebble grey)
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	1
Net weight	114.06 g
Country of origin	Romania
GTIN	5713140051195
eCl@ss	27440205 Contact insert for industrial connectors
ETIM	EC000438
UNSPSC 24.0	39121522
