DIN-Power D032MR-3,0C1-2-clip

Article No.: 09 04 332 6919

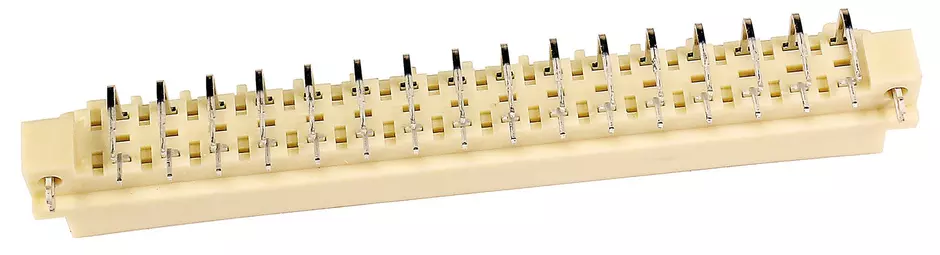

Image is for illustration purposes only. Please refer to product description.

Male connector

Article No.: 09 04 332 6919

to see prices and availability.

to see prices and availability.

Male connector

Reflow soldering termination (THR)

Rated current: ‌6 A

Contacts: 32

Angled

Copper alloy

Noble metal over Ni Mating side, Sn over Ni Termination side

Performance level: 2, acc. to IEC 60603-2

Coding: Hole coding, Coding with loss of contacts

PCB fixing: With fixing flange, With snap-in clip

Thermoplastic resin, glass-fibre filled

Beige

Identification

Category	Connectors
Identification	Type D
Element	Male connector
Series	DIN 41612
Description of the contact	Angled
Features	Colour deviations and speckles permitted

Version

Termination method	Reflow soldering termination (THR)
Connection type	Motherboard to daughtercard
	Extender card
	PCB to cable
Number of contacts	32
Contact configuration	Rows a and c, positions 2, 4, ... , 30, 32
Coding	Hole coding
Coding	Coding with loss of contacts
PCB fixing	With fixing flange
PCB fixing	With snap-in clip

Technical characteristics

Performance level	2
Performance level	acc. to IEC 60603-2
Hot plugging	No
Contact rows	2
Contact spacing (termination side)	5.08 mm
Contact spacing (mating side)	5.08 mm
Rated current	6 A
Rated current	Rated current measured at 20 °C, see derating curve for details
Clearance distance	3 mm
Creepage distance	3 mm
Insulation resistance	>10¹² Ω
Contact resistance	15 mΩ
Limiting temperature	-55 ... +125 °C (during reflow soldering max. +240 °C for 15 s)
Insertion force	40 N
Withdrawal force	40 N
Mating cycles	400
Test voltage Ur.m.s.	1.55 kV
Isolation group	II (400 ≤ CTI < 600)
PCB thickness	‌1.6 mm ±0.2 ‌

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R26
ELV status	compliant
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (insert)	Thermoplastic resin, glass-fibre filled
Colour (insert)	Beige
Material (contacts)	Copper alloy
Surface (contacts)	Noble metal over Ni Mating side
Surface (contacts)	Sn over Ni Termination side
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	20
Net weight	11.7 g
Country of origin	Romania
GTIN	5713140195424
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
