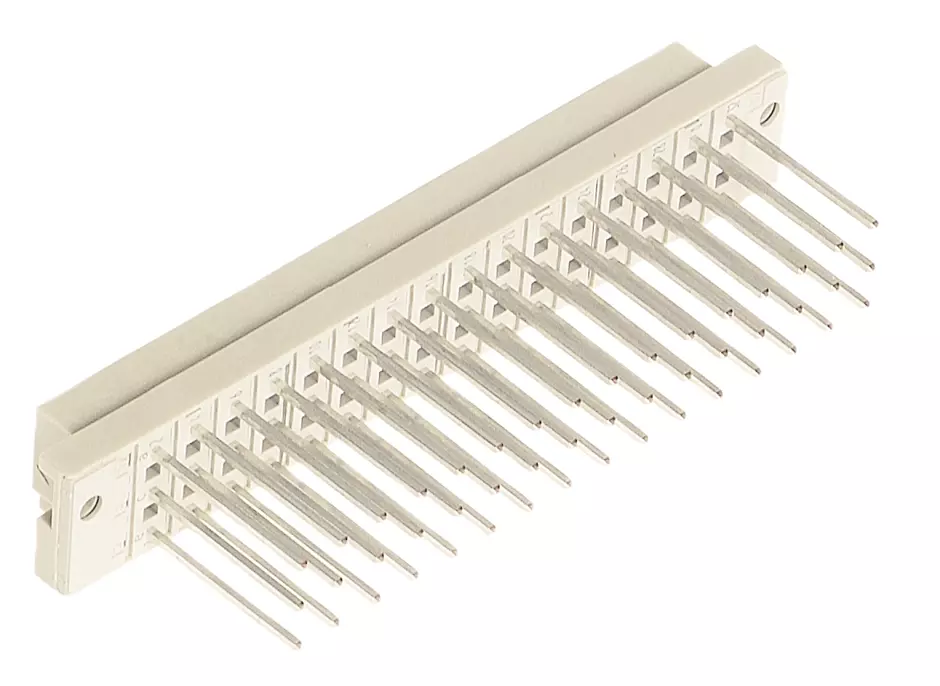

DIN-Power E048FW-20,0C1-1

Article No.: 09 05 248 2821

Image is for illustration purposes only. Please refer to product description.

Female connector

Article No.: 09 05 248 2821

to see prices and availability.

to see prices and availability.

Female connector

Wrap termination

Rated current: ‌6 A

Contacts: 48

Straight

Copper alloy

Noble metal over Ni Mating side, Ni Termination side

Performance level: 1, acc. to IEC 60603-2

Coding: Hole coding, Coding with loss of contacts

PCB fixing: With fixing flange

Thermoplastic resin, glass-fibre filled

RAL 7032 (pebble grey)

Identification

Version

Technical characteristics

Contact rows	3
Contact spacing (mating side)	5.08 mm
Rated current	‌ 6 A
Rated current	Rated current measured at 20 °C, see derating curve for details
Clearance distance	≥ 3 mm
Creepage distance	≥ 3 mm
Insulation resistance	>10¹² Ω
Contact resistance	≤ 15 mΩ
Limiting temperature	-55 ... +125 °C
Insertion force	≤ 75 N
Withdrawal force	≤ 75 N
Performance level	1
Performance level	acc. to IEC 60603-2
Mating cycles	≥ 500
Test voltage Ur.m.s.	1.55 kV (contact-contact)
Test voltage Ur.m.s.	1.55 kV (contact-ground)
Isolation group	IIIa (175 ≤ CTI < 400)
Hot plugging	No

Material properties

Material (insert)	Thermoplastic resin, glass-fibre filled
Colour (insert)	RAL 7032 (pebble grey)
Material (contacts)	Copper alloy
Surface (contacts)	Noble metal over Ni Mating side
Surface (contacts)	Ni Termination side
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Nickel
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
Requirement set with Hazard Levels	R26

Specifications and approvals

Commercial data

Packaging size	20
Net weight	26.92 g
Country of origin	Germany
European customs tariff number	85366990
GTIN	5713140009059
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
