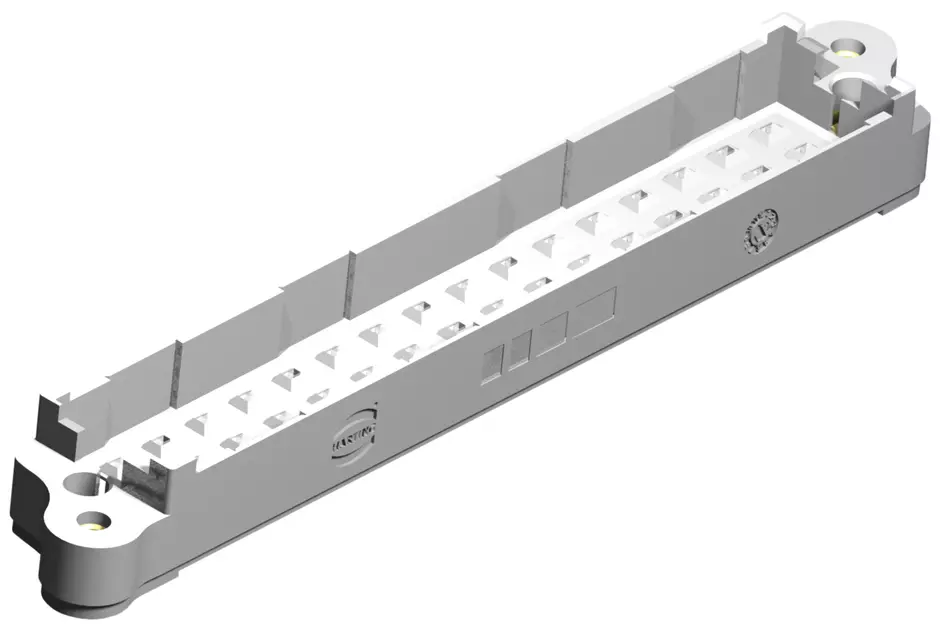

DIN-Power F-shroud for SH D20 3,2

Article No.: 09 06 002 9921

Image is for illustration purposes only. Please refer to product description.

Pin shroud

Article No.: 09 06 002 9921

to see prices and availability.

to see prices and availability.

Pin shroud

for type F ʺlow profileʺ with press-in pins, Without locking levers

Thermoplastic

RAL 7032 (pebble grey)

Identification

Category	Accessories
Series	DIN 41612
Type of accessory	Pin shroud
Description of the accessory	for type F ʺlow profileʺ with press-in pins
Description of the accessory	Without locking levers

Version

Termination length	13 mm
Fixing	Screw fixing

Technical characteristics

Isolation group	IIIa (175 ≤ CTI < 400)
PCB thickness	‌3.2 mm +0.8 ‌

Material properties

Material (accessories)	Thermoplastic
Colour (accessories)	RAL 7032 (pebble grey)
Material flammability class acc. to UL 94	V-0
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Specifications and approvals

Railway classification	F1/I2 acc. to NFF 16-101/102

Commercial data

Packaging size	20
Net weight	7.32 g
Country of origin	Romania
European customs tariff number	85366990
GTIN	5713140010796
eCl@ss	27440292 Connector component (accessories)
ETIM	EC002943
UNSPSC 24.0	39121400
