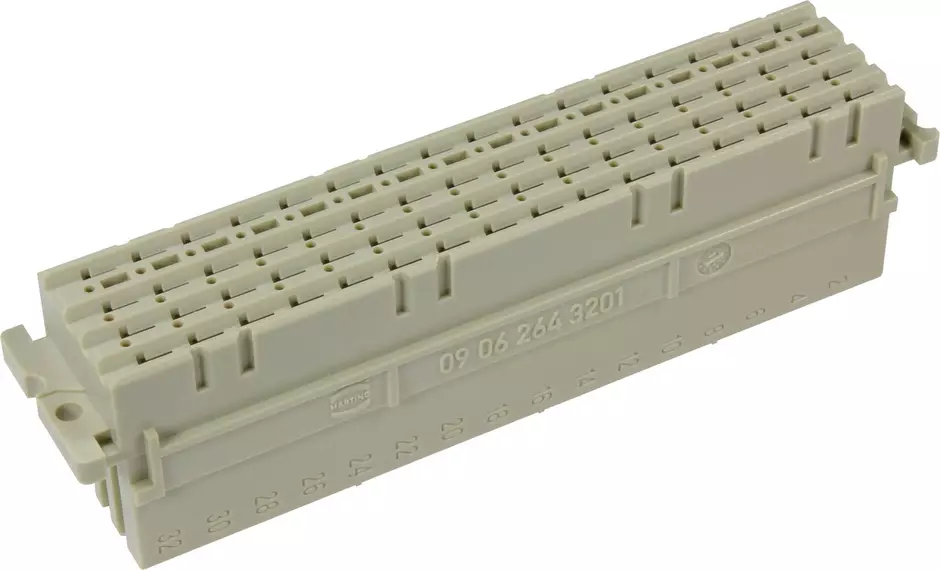

DIN-Power G064FC-B

Article No.: 09 06 264 3201

Image is for illustration purposes only. Please refer to product description.

Female connector

Article No.: 09 06 264 3201

to see prices and availability.

to see prices and availability.

Female connector

Crimp termination

Contacts: 64

Copper alloy

Coding: Hole coding, Coding with loss of contacts

PCB fixing: With fixing flange

Thermoplastic resin, glass-fibre filled

RAL 7032 (pebble grey)

Identification

Version

Termination method	Crimp termination
Connection type	PCB to cable
Number of contacts	64
Coding	Hole coding
Coding	Coding with loss of contacts
PCB fixing	With fixing flange
Details	Please order crimp contacts separately.

Technical characteristics

Hot plugging	No
Contact rows	4
Contact spacing (termination side)	5.08 mm
Contact spacing (mating side)	5.08 mm
Rated current	Rated current measured at 20 °C, see derating curve for details
Clearance distance	1.6 mm
Creepage distance	3 mm
Insulation resistance	>10¹² Ω
Limiting temperature	-55 ... +125 °C
Insertion force	100 N
Withdrawal force	100 N
Test voltage Ur.m.s.	1.55 kV (contact-contact)
Test voltage Ur.m.s.	2.5 kV (contact-ground)
Isolation group	IIIa (175 ≤ CTI < 400)

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R26
ELV status	compliant
Material (insert)	Thermoplastic resin, glass-fibre filled
Colour (insert)	RAL 7032 (pebble grey)
Material (contacts)	Copper alloy
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Specifications	IEC 60603-2
Railway classification	F4/I3 acc. to NFF 16-101/102

Commercial data

European customs tariff number	85366990
Packaging size	75
Net weight	28.155 g
Country of origin	Germany
GTIN	5713140014046
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
