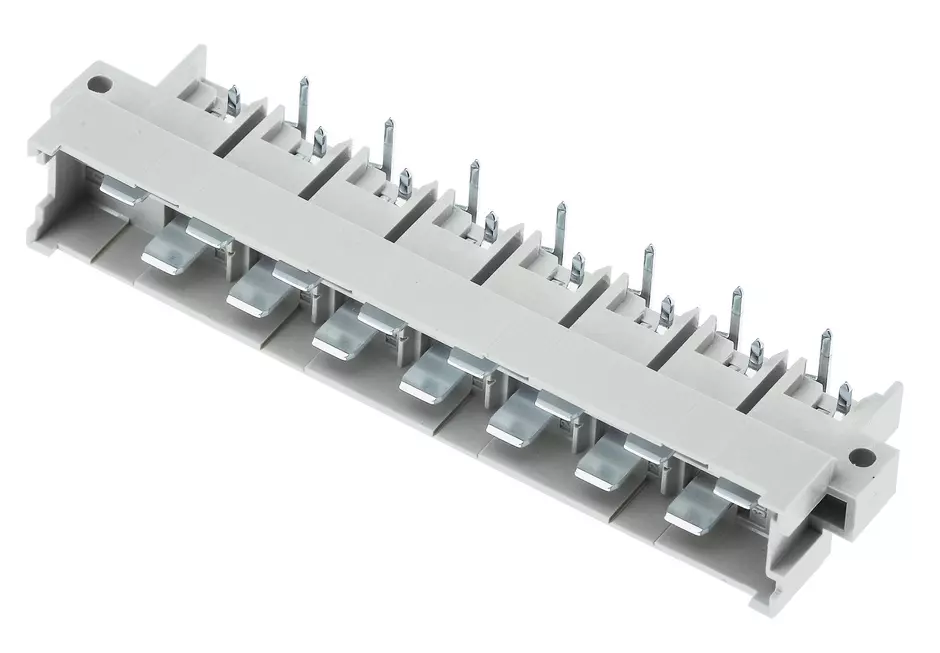

DIN-Power H015MS-3,2C1-1 (NFF)

Article No.: 09 06 115 2911 222

Image is for illustration purposes only. Please refer to product description.

Male connector

Article No.: 09 06 115 2911 222

to see prices and availability.

to see prices and availability.

Male connector

Wave soldering termination

Rated current: ‌15 A

Contacts: 15

Angled

Copper alloy

Ag over Ni Mating side, Sn over Ag over Ni Termination side

Performance level: 1, acc. to IEC 60603-2

Coding: Shroud coding, D20 coding

PCB fixing: With fixing flange

Thermoplastic resin, glass-fibre filled

RAL 7035 (light grey)

Identification

Version

Termination method	Wave soldering termination
Connection type	Motherboard to daughtercard
Connection type	PCB to cable
Number of contacts	15
Contact configuration	Row d, positions 6, 10, ... , 26, 30 and row z, positions 4, 8, ... , 28, 32
Coding	Shroud coding
Coding	D20 coding
PCB fixing	With fixing flange

Technical characteristics

Performance level	1
Performance level	acc. to IEC 60603-2
Hot plugging	No
Contact spacing (termination side)	5.08 mm
Contact spacing (termination side)	5.08 mm
Contact spacing (mating side)	6.5 mm
Contact spacing (mating side)	10.16 mm
Rated current	15 A
Rated current	Rated current measured at 20 °C, see derating curve for details
Clearance distance	4.5 mm
Creepage distance	8 mm
Insulation resistance	>10¹¹ Ω
Contact resistance	8 mΩ
Limiting temperature	-55 ... +125 °C
Insertion force	90 N
Withdrawal force	90 N
Mating cycles	500
Test voltage Ur.m.s.	3.1 kV
Isolation group	II (400 ≤ CTI < 600)

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R26
ELV status	compliant
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (insert)	Thermoplastic resin, glass-fibre filled
Colour (insert)	RAL 7035 (light grey)
Material (contacts)	Copper alloy
Surface (contacts)	Ag over Ni Mating side
Surface (contacts)	Sn over Ag over Ni Termination side
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Specifications	IEC 60603-2
Railway classification	F1/I2 acc. to NFF 16-101/102

Commercial data

European customs tariff number	85366990
Packaging size	20
Net weight	31.36 g
Country of origin	Romania
GTIN	5713140011458
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
