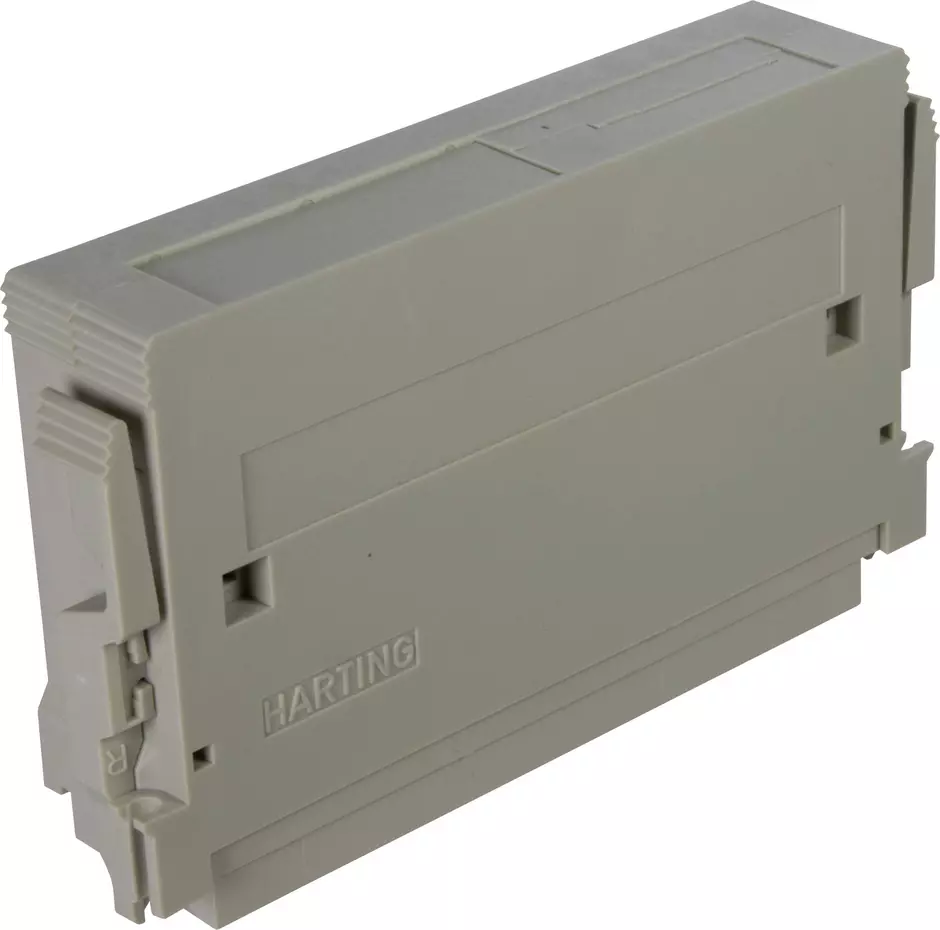

DIN-Power shell housing C

Article No.: 09 05 048 0501

Image is for illustration purposes only. Please refer to product description.

Shell housing

Article No.: 09 05 048 0501

to see prices and availability.

to see prices and availability.

Shell housing

20 mm

Thermoplastic, Fibre-glass reinforced

RAL 7032 (pebble grey)

Identification

Category	Accessories
Series	DIN 41612
Identification	Type E
Identification	har-bus^® 64
Type of accessory	Shell housing
Description of the accessory	20 mm

Version

Version	Top/side entry
Number of cable entries	4
Cable entry	4x
Strain relief	With cable tie
Locking type	Locking levers or locking screws
2 parts	Yes
Separable	Yes

Technical characteristics

Limiting temperature	-40 ... +125 °C
Degree of protection acc. to IEC 60529	IP20
Isolation group	IIIa (175 ≤ CTI < 400)

Material properties

Colour (hood/housing)	RAL 7032 (pebble grey)
Material (accessories)	Thermoplastic
Material (accessories)	Fibre-glass reinforced
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Specifications and approvals

Railway classification	F1/I2 acc. to NFF 16-101/102

Commercial data

Packaging size	10
Net weight	45.53 g
Country of origin	Germany
European customs tariff number	85389099
GTIN	5713140008793
eCl@ss	27440292 Connector component (accessories)
ETIM	EC002943
UNSPSC 24.0	39121400
