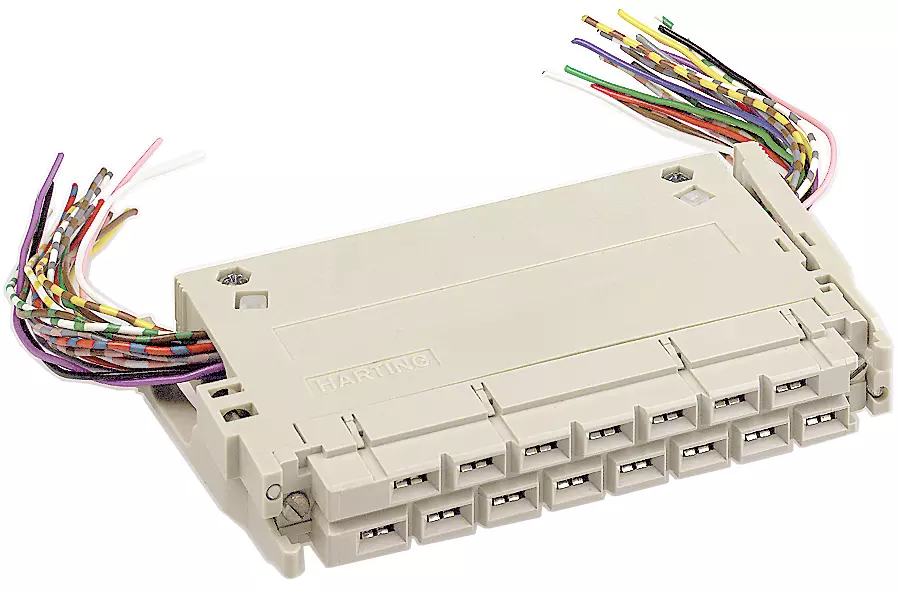

DIN-Power shell housing D15

Article No.: 09 06 048 0515

Image is for illustration purposes only. Please refer to product description.

Shell housing

Article No.: 09 06 048 0515

to see prices and availability.

to see prices and availability.

Shell housing

15 mm

Thermoplastic, Fibre-glass reinforced

RAL 7032 (pebble grey)

Identification

Category	Accessories
Series	DIN 41612
Identification	Type F
	Type H
	Type MH
Type of accessory	Shell housing
Description of the accessory	15 mm

Version

Version	Side entry
Number of cable entries	2
Cable entry	2x
Strain relief	With cable clamps
Locking type	Locking levers or locking screws
2 parts	Yes
Separable	Yes

Technical characteristics

Limiting temperature	-40 ... +125 °C
Degree of protection acc. to IEC 60529	IP20
Isolation group	IIIa (175 ≤ CTI < 400)

Material properties

Colour (hood/housing)	RAL 7032 (pebble grey)
Material (accessories)	Thermoplastic
Material (accessories)	Fibre-glass reinforced
Material flammability class acc. to UL 94	V-0
RoHS	compliant
ELV status	compliant
China RoHS	e
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Not contained
California Proposition 65 substances	Yes

Specifications and approvals

Railway classification	F1/I2 acc. to NFF 16-101/102

Commercial data

Packaging size	10
Net weight	30 g
Country of origin	Germany
European customs tariff number	85389099
GTIN	5713140011250
eCl@ss	27440292 Connector component (accessories)
ETIM	EC002943
UNSPSC 24.0	39121400
