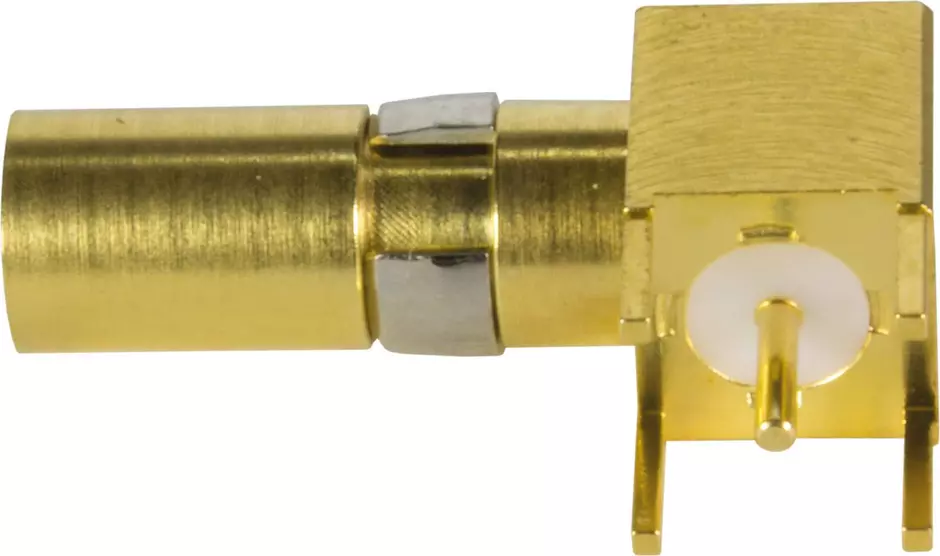

DIN-Signal coax m, solder/crimp 50Ohm

Article No.: 09 03 000 6162

Image is for illustration purposes only. Please refer to product description.

Coaxial contact

Article No.: 09 03 000 6162

to see prices and availability.

to see prices and availability.

Coaxial contact

Angled

Rated current: ≤1.5 A

Male contact for female connectors

Copper alloy

Noble metal over Ni Mating side

Identification

Version

Termination method	Solder termination
Termination method	PCB solder termination
Gender	Male contact for female connectors
Connection type	Motherboard to daughtercard
	Mezzanine
	Extender card
	PCB to cable
Manufacturing process	Turned contacts

Technical characteristics

Material properties

Material (contacts)	Copper alloy
Surface (contacts)	Noble metal over Ni Mating side
Material (locking)	Copper alloy
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
ECHA SCIP number	339476a1-86ba-49e9-ab4b-cd336420d72a
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Specifications and approvals

Specifications	DIN 41626

Commercial data

Packaging size	30
Net weight	2.1 g
Country of origin	Germany
European customs tariff number	85366990
GTIN	5713140003989
eCl@ss	27440204 Contact for industrial connectors
ETIM	EC000796
UNSPSC 24.0	39121522
