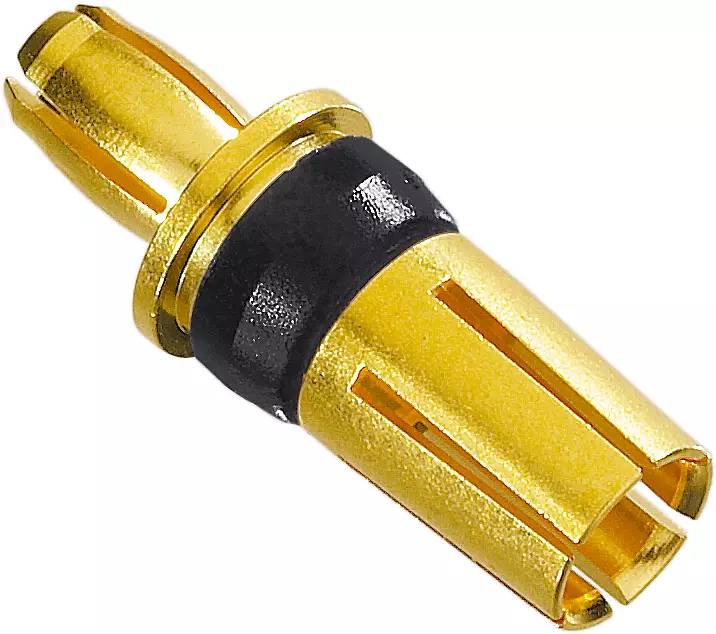

DIN-Signal high current f, 40A press-in

Article No.: 09 03 000 6250


Press-in contact

DIN-Signal high current f, 40A press-in

Article No.: 09 03 000 6250

to see prices and availability.

Properties Overview

Press-in contact Straight Rated current: ≤40 A Female contact for female connectors Copper alloy Noble metal over Ni Mating side

Product Details


Category Contacts
Series DIN 41612
Type of contact Press-in contact
Description of the contact Straight
Contacts for DIN 41612 Type M-flat
Gender Female contact for female connectors
Connection type Motherboard to daughtercard
Mezzanine
PCB to cable
Manufacturing process Turned contacts
Rated current ≤ 40 A
Insertion force ≤ 10 N
Withdrawal force ≥ 1.6 N
Performance level 1
Mating cycles ≥ 500
Material (contacts) Copper alloy
Surface (contacts) Noble metal over Ni Mating side
RoHS compliant with exemption
RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
ELV status compliant with exemption
China RoHS 50
REACH Annex XVII substances Not contained
REACH ANNEX XIV substances Not contained
REACH SVHC substances Yes
REACH SVHC substances Lead
ECHA SCIP number 339476a1-86ba-49e9-ab4b-cd336420d72a
California Proposition 65 substances Yes
California Proposition 65 substances Lead
Specifications DIN 41626
Packaging size 100
Net weight 1.015 g
Country of origin Czechia
European customs tariff number 85366990
GTIN 5713140004139
ETIM EC000796
eCl@ss 27440204 Contact for industrial connectors
