  4. 09 14 002 2701

Han 40A axial module, female 2,5-8 mm²

Article No.: 09 14 002 2701


Configurable

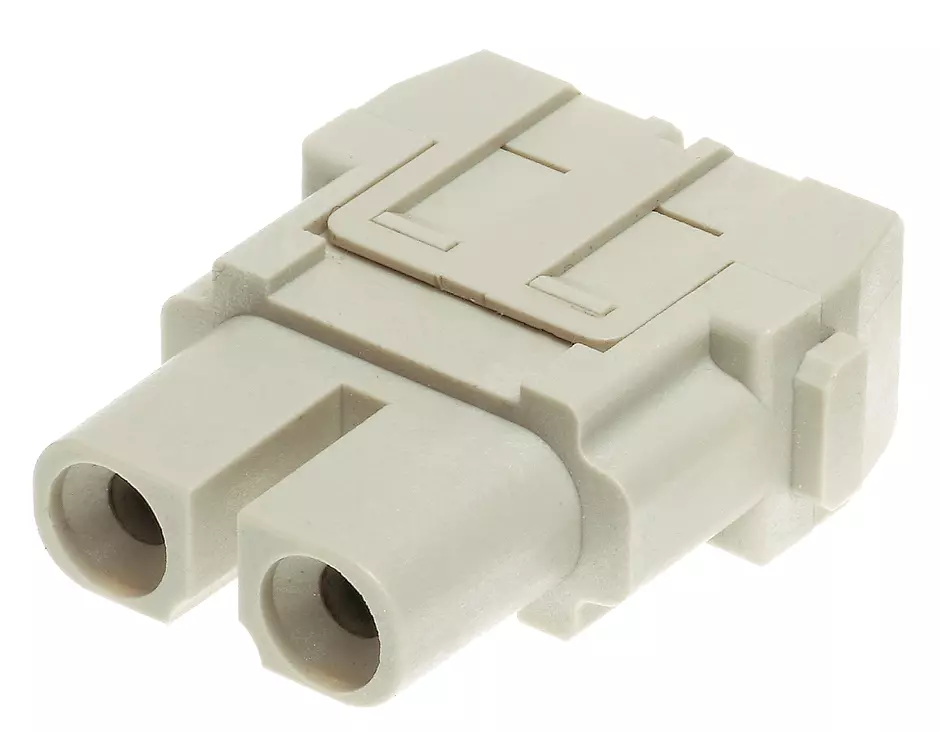

Han 40A axial module, female 2,5-8 mm²

Image is for illustration purposes only. Please refer to product description.

Han 40A axial module, female 2,5-8 mm²Han 40A axial module, female 2,5-8 mm²
ConfigurableHan® 40 A module

Han 40A axial module, female 2,5-8 mm²

Article No.: 09 14 002 2701

to see prices and availability.
Load in configurator
00
Product inquiry
to see prices and availability.
Load in configurator
00
Product inquiry

Properties overview

Han® 40 A module Single module Axial screw termination Female Contacts: 2 Conductor cross-section: 2.5 ... 8 mm² Rated current: ‌40 A Polycarbonate (PC) RAL 7032 (pebble grey) Copper alloy Silver plated

Product details


Category Modules
Type of module Han® 40 A module
Size of the module Single module
Series Han-Modular®
Termination method Axial screw termination
Gender Female
Number of contacts 2
Conductor cross-section (mm²) [2,5] ... [8 mm²]
Wire outer diameter ≤10.5 mm
Rated current 40 A
Rated voltage 1000 V
Rated impulse voltage 8 kV
Pollution degree 3
Rated voltage acc. to UL 600 V
Rated current acc. to UL 16 A AWG 14
27 A AWG 12
34 A AWG 10
Rated current acc. to CSA 16 A AWG 14
27 A AWG 12
34 A AWG 10
Insulation resistance >1010 Ω
Contact resistance 0.3 mΩ
Limiting temperature [-40] ... [+125 °C]
Stripping length 5 mm @ 2.5 mm²
5 mm @ 4 mm²
8 mm @ 6 mm²
11 mm @ 8 mm²
Tightening torque [‌1,5 Nm] @ 2.5 mm²
[‌1,5 Nm] @ 4 mm²
[‌2 Nm] @ 6 mm²
[‌2 Nm] @ 8 mm²
Mating cycles 500
ECHA SCIP number 5dbb3851-b94e-4e88-97a1-571845975242
Fire protection on railway vehicles EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS 50
RoHS compliant with exemption
REACH SVHC substances Yes
REACH Annex XVII substances Not contained
REACH ANNEX XIV substances Not contained
Requirement set with Hazard Levels R22 (HL 1-3)
R23 (HL 1-3)
ELV status compliant with exemption
California Proposition 65 substances Yes
RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances Lead
California Proposition 65 substances Lead
Nickel
Material (insert) Polycarbonate (PC)
Colour (insert) RAL 7032 (pebble grey)
Material (contacts) Copper alloy
Surface (contacts) Silver plated
Material flammability class acc. to UL 94 V-0
UL / CSA UL 1977 ECBT2.E235076
CSA-C22.2 No. 182.3 ECBT8.E235076
UL 2237 PVVA2.E318390
CSA-C22.2 No. 182.3 PVVA8.E318390
Approvals DNV GL
Specifications IEC 60664-1
IEC 61984
IEC 61373 Category 1 Class B
European customs tariff number 85389099
Packaging size 2
Net weight 22 g
Country of origin Germany
GTIN 5713140019713
eCl@ss 27440217 Module for industrial connectors (power/signals)
ETIM EC000438
UNSPSC 24.0 39121552
