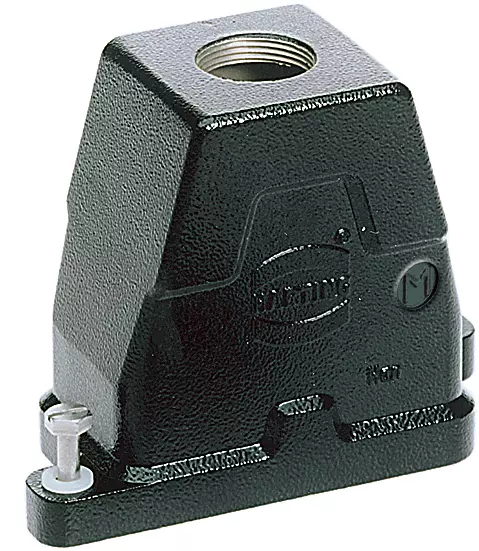

Han 6HPR Hood Top Entry M25 Screw lock

Article No.: 19 40 006 0411

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Hood

Article No.: 19 40 006 0411

to see prices and availability.

to see prices and availability.

Hood

Size: 6 B

Screw locking

Stainless steel

Top entry

1x M25

Material (hood/housing): Aluminium die-cast, Corrosion resistant

Powder-coated

RAL 9005 (jet black)

Identification

Version

Locking type	Screw locking
Size	6 B
Version	Top entry
Number of cable entries	1
Cable entry	1x M25
Field of application	Hoods/housings for harsh outdoor environments

Technical characteristics

Limiting temperature	[-40] ... [+125 °C]
Note on the limiting temperature	For use as a connector according to IEC 61984.
Tightening torque (screw locking)	4 Nm
Degree of protection acc. to IEC 60529	IP65
	IP68
	IP69 / IPX9K acc. to ISO 20653
Type rating acc. to UL 50 / UL 50E	4
	4X
	12

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R1 (HL 1-3)
Requirement set with Hazard Levels	R7 (HL 1-3)
ELV status	compliant
California Proposition 65 substances	Yes
California Proposition 65 substances	Nickel
California Proposition 65 substances	Naphthalene
Material (hood/housing)	Aluminium die-cast
Material (hood/housing)	Corrosion resistant
Surface (hood/housing)	Powder-coated
Colour (hood/housing)	RAL 9005 (jet black)
Material (locking)	Stainless steel

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	350 g
Country of origin	Germany
GTIN	5713140129375
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
