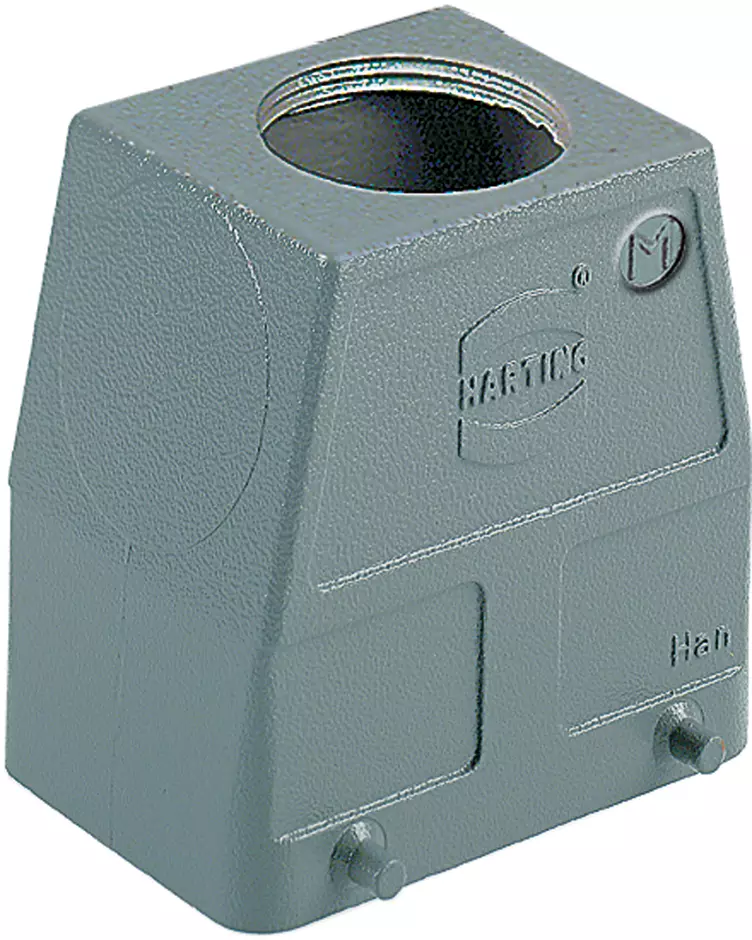

Han A Hood Top Entry HC 4 Pegs M32

Article No.: 19 20 032 0427

Image is for illustration purposes only. Please refer to product description.

Hood

Article No.: 19 20 032 0427

to see prices and availability.

to see prices and availability.

Hood

Size: 32 A

High construction

Double locking lever

Top entry

1x M32

Material (hood/housing): Aluminium die-cast

Powder-coated

RAL 7037 (dust grey)

Identification

Version

Locking type	Double locking lever
Size	32 A
Version	Top entry
Number of cable entries	1
Cable entry	1x M32
Field of application	Standard Hoods/housings for industrial applications

Technical characteristics

Limiting temperature	[-40] ... [+125 °C]
Note on the limiting temperature	For use as a connector according to IEC 61984.
Degree of protection acc. to IEC 60529	IP65
Type rating acc. to UL 50 / UL 50E	4
	4X
	12

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R1 (HL 1-3)
Requirement set with Hazard Levels	R7 (HL 1-3)
ELV status	compliant
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (hood/housing)	Aluminium die-cast
Surface (hood/housing)	Powder-coated
Colour (hood/housing)	RAL 7037 (dust grey)

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	205 g
Country of origin	Germany
GTIN	5713140124912
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
