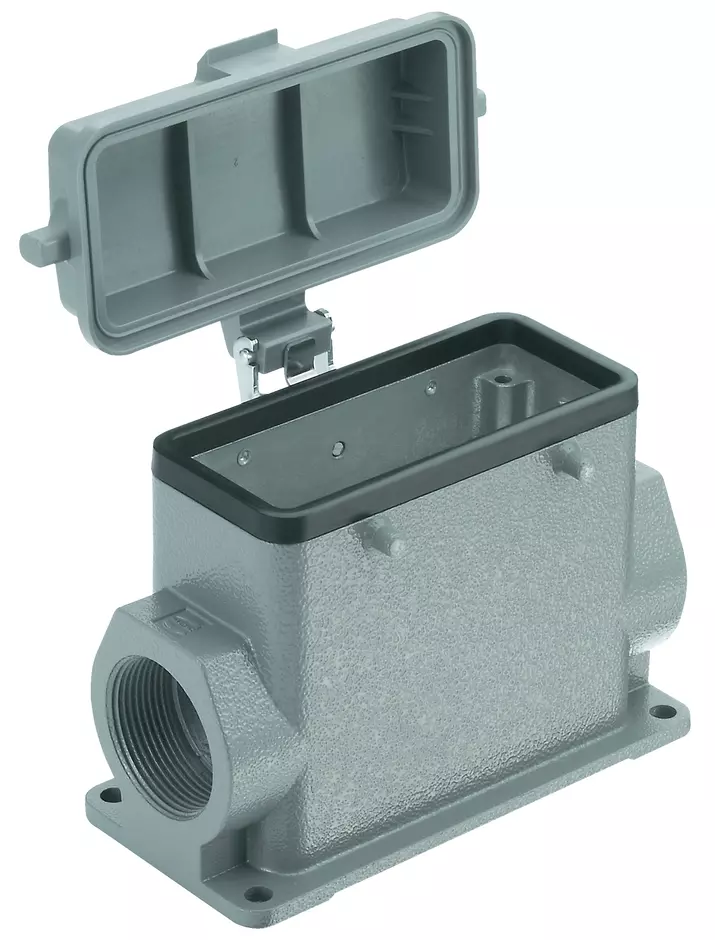

Han B Base SM HC 4 Peg plast cover 2xM32

Article No.: 19 30 016 0267

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Surface mounted housing

Article No.: 19 30 016 0267

to see prices and availability.

to see prices and availability.

Surface mounted housing

With thermo-plastic cover

Size: 16 B

High construction

Double locking lever (on the hood)

Side entry

2x M32

Material (hood/housing): Aluminium die-cast

Powder-coated

RAL 7037 (dust grey)

Material (seal): NBR

Identification

Version

Locking type	Double locking lever (on the hood)
Size	16 B
Version	Side entry
Number of cable entries	2
Cable entry	2x M32
Field of application	Standard hoods/housings for industrial connectors
Han-Easy Lock®	No

Technical characteristics

Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Mating cycles	≥ 500
Degree of protection acc. to IEC 60529	IP65
Type rating acc. to UL 50 / UL 50E	4
	4X
	12

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R1 (HL 1-3)
Requirement set with Hazard Levels	R7 (HL 1-3)
ELV status	compliant
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (hood/housing)	Aluminium die-cast
Surface (hood/housing)	Powder-coated
Colour (hood/housing)	RAL 7037 (dust grey)
Material (seal)	NBR

Specifications and approvals

Approvals	CE
Approvals	DNV GL

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	350 g
Country of origin	Germany
GTIN	5713140125902
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
