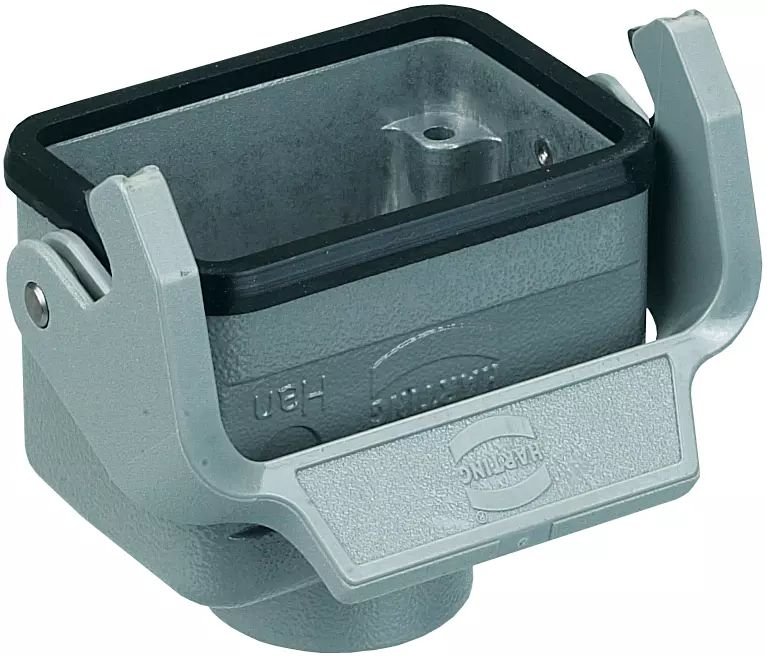

Han B Hood Coupler LC 1 Lever M20

Article No.: 19 30 006 1750

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Cable to cable housing

Article No.: 19 30 006 1750

to see prices and availability.

to see prices and availability.

Cable to cable housing

Size: 6 B

Low construction

Single locking lever

Polycarbonate (PC), Stainless steel

Top entry

1x M20

Material (hood/housing): Aluminium die-cast

Powder-coated

RAL 7037 (dust grey)

Material (seal): NBR

Identification

Version

Locking type	Single locking lever
Size	6 B
Version	Top entry
Number of cable entries	1
Cable entry	1x M20
Field of application	Standard hoods/housings for industrial connectors
Han-Easy Lock®	Yes

Technical characteristics

Limiting temperature	-40 ... +125 °C
Note on the limiting temperature	For use as a connector according to IEC 61984.
Mating cycles	≥ 500
Degree of protection acc. to IEC 60529	IP65
Type rating acc. to UL 50 / UL 50E	4
	4X
	12

Material properties

ECHA SCIP number	60b1a572-bb3f-476f-9307-b7d1688bd90c
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant
California Proposition 65 substances	Yes
REACH SVHC substances	Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
California Proposition 65 substances	Nickel
California Proposition 65 substances	Naphthalene
Material (hood/housing)	Aluminium die-cast
Surface (hood/housing)	Powder-coated
Colour (hood/housing)	RAL 7037 (dust grey)
Material (seal)	NBR
Material (locking)	Polycarbonate (PC)
Material (locking)	Stainless steel
Colour (locking)	RAL 7037 (dust grey)
Material flammability class acc. to UL 94 (locking levers)	V-0

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	125.4 g
Country of origin	Germany
GTIN	5713140125209
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
