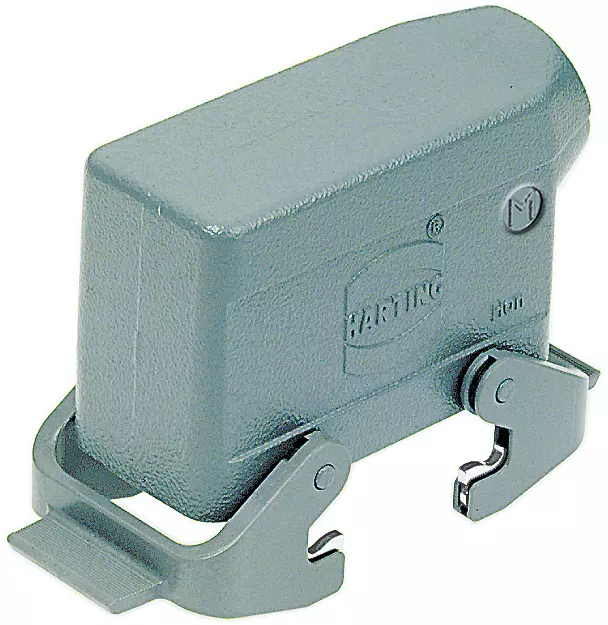

Han B Hood Side Entry LC 2 Levers M20

Article No.: 19 30 010 1530

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Hood

Article No.: 19 30 010 1530

to see prices and availability.

to see prices and availability.

Hood

Size: 10 B

Low construction

Double locking lever (on the hood)

Polycarbonate (PC), Stainless steel

Side entry

1x M20

Material (hood/housing): Aluminium die-cast

Powder-coated

RAL 7037 (dust grey)

Identification

Version

Locking type	Double locking lever (on the hood)
Size	10 B
Version	Side entry
Number of cable entries	1
Cable entry	1x M20
Field of application	Standard hoods/housings for industrial connectors
Han-Easy Lock®	true

Technical characteristics

Limiting temperature	[-40] ... [+125 °C]
Note on the limiting temperature	For use as a connector according to IEC 61984.
Mating cycles	500
Degree of protection acc. to IEC 60529	IP65
	IP66
	IP67
Type rating acc. to UL 50 / UL 50E	4
	4X
	12

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant
California Proposition 65 substances	Yes
REACH SVHC substances	Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
California Proposition 65 substances	Nickel
Material (hood/housing)	Aluminium die-cast
Surface (hood/housing)	Powder-coated
Colour (hood/housing)	RAL 7037 (dust grey)
Material (locking)	Polycarbonate (PC)
Material (locking)	Stainless steel
Colour (locking)	RAL 7037 (dust grey)
Material flammability class acc. to UL 94 (locking levers)	V-0

Specifications and approvals

Approvals	CE
Approvals	DNV GL

Commercial data

European customs tariff number	85389099
Packaging size	1
Net weight	190.6 g
Country of origin	Germany
GTIN	5713140125773
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
