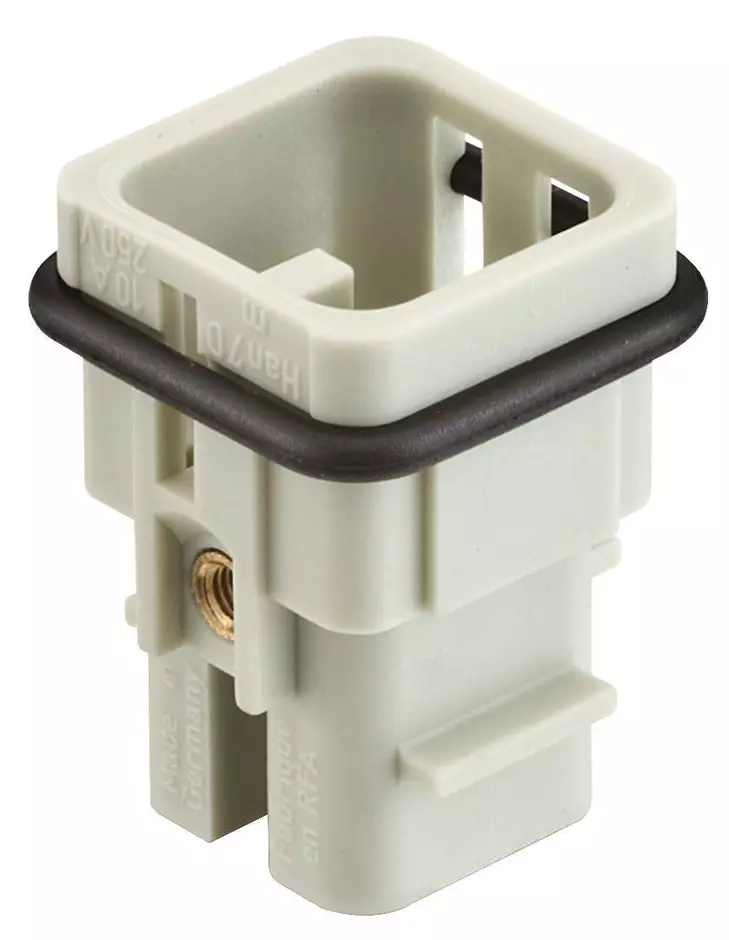

Han D 7 Pos. M Insert Crimp

Article No.: 09 21 007 3031

Configurable

Image is for illustration purposes only. Please refer to product description.

Configurable

Inserts

Article No.: 09 21 007 3031

to see prices and availability.

to see prices and availability.

Inserts

Crimp termination

Male

Polyamide (PA)

RAL 7032 (pebble grey)

Rated current: ‌10 A

Size: 3 A

Contacts: 7

Conductor cross-section: 0.14 ... 2.5 mm²

Identification

Category	Inserts
Series	Han D^®

Version

Termination method	Crimp termination
Gender	Male
Size	3 A
Number of contacts	7
PE contact	Yes
Details	Please order crimp contacts separately.
Details	Only for thermoplastic hoods / housings

Technical characteristics

Material properties

ECHA SCIP number	5dbb3851-b94e-4e88-97a1-571845975242
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (insert)	Polyamide (PA)
Colour (insert)	RAL 7032 (pebble grey)
Material (seal)	NBR
Material flammability class acc. to UL 94	HB

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	10
Net weight	7.5 g
Country of origin	Romania
GTIN	5713140040427
eCl@ss	27440205 Contact insert for industrial connectors
ETIM	EC000438
UNSPSC 24.0	39121522
