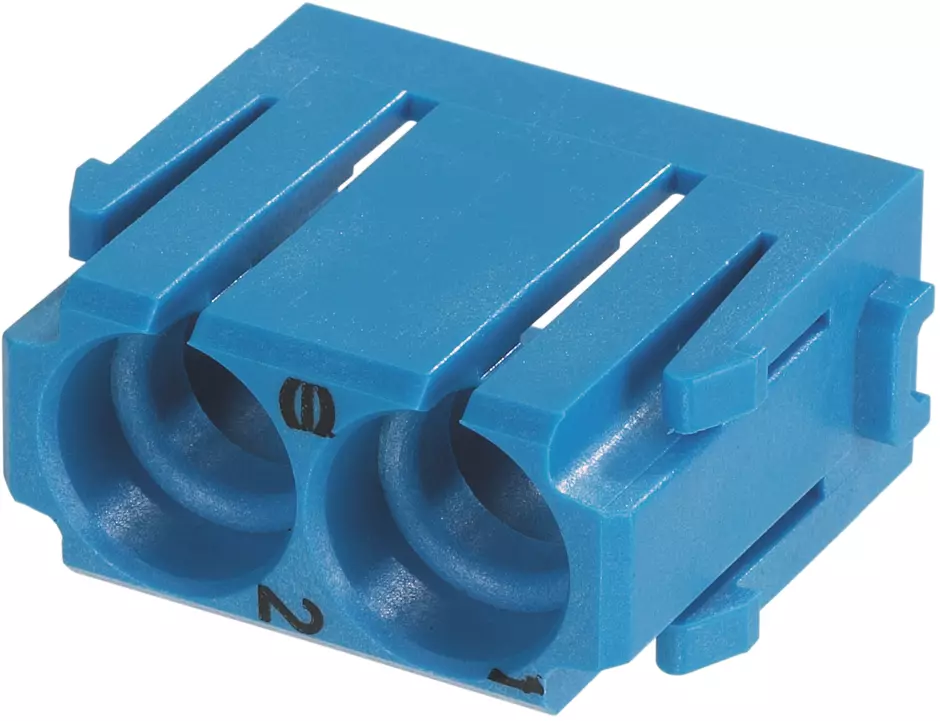

Han Pneumatic module, for 6mm contacts

Article No.: 09 14 002 4501

Image is for illustration purposes only. Please refer to product description.

Han® Pneumatic module

Article No.: 09 14 002 4501

to see prices and availability.

to see prices and availability.

Han® Pneumatic module

Single module

Male, Female

Contacts: 2

Polycarbonate (PC)

Blue

Identification

Version

Gender	Male
Gender	Female
Number of contacts	2
Details	Please order contacts separately.
Details	Using of guiding pins is imperative!

Technical characteristics

Limiting temperature	[-40] ... [+80 °C]
Mating cycles	500

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant
Material (insert)	Polycarbonate (PC)
Colour (insert)	Blue
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	2
Net weight	8 g
Country of origin	Germany
GTIN	5713140019973
eCl@ss	27440220 Module for industrial connectors (pneumatic)
ETIM	EC000438
UNSPSC 24.0	39121552
