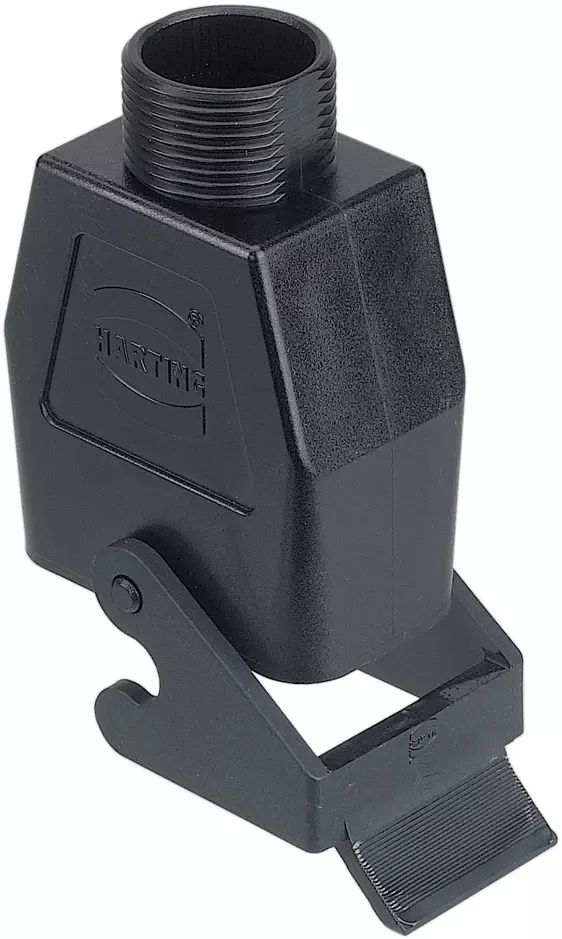

Han Q 8/0-kg-16

Article No.: 09 12 008 0727

Image is for illustration purposes only. Please refer to product description.

Cable to cable housing

Article No.: 09 12 008 0727

to see prices and availability.

to see prices and availability.

Cable to cable housing

for Han-Compact® half cable gland

Size: Han-Compact®

Single locking lever

Polyamide (PA)

Top entry

1x Pg 16

Material (hood/housing): Polycarbonate (PC)

RAL 9005 (jet black)

Identification

Category	Hoods / Housings
Series of hoods/housings	Han-Compact®
Type of hood/housing	Cable to cable housing
Description of hood/housing	for Han-Compact^® half cable gland

Version

Locking type	Single locking lever
Size	Han-Compact®
Version	Top entry
Number of cable entries	1
Cable entry	1x Pg 16
Field of application	Hoods/housings for industrial applications

Technical characteristics

Limiting temperature	[-40] ... [+125 °C]
Note on the limiting temperature	For use as a connector according to IEC 61984.
Degree of protection acc. to IEC 60529	IP65
Type rating acc. to UL 50 / UL 50E	4
	4X
	12

Material properties

ECHA SCIP number	60b1a572-bb3f-476f-9307-b7d1688bd90c
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R22 (HL 1-3)
Requirement set with Hazard Levels	R23 (HL 1-3)
ELV status	compliant
REACH SVHC substances	Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
Material (hood/housing)	Polycarbonate (PC)
Colour (hood/housing)	RAL 9005 (jet black)
Material (locking)	Polyamide (PA)
Colour (locking)	RAL 9005 (jet black)
Material flammability class acc. to UL 94	V-0
Material flammability class acc. to UL 94 (locking levers)	V-0

Specifications and approvals

Commercial data

European customs tariff number	85389099
Packaging size	10
Net weight	29 g
Country of origin	Germany
GTIN	5713140017641
eCl@ss	27440202 Shell for industrial connectors
ETIM	EC000437
UNSPSC 24.0	39121466
