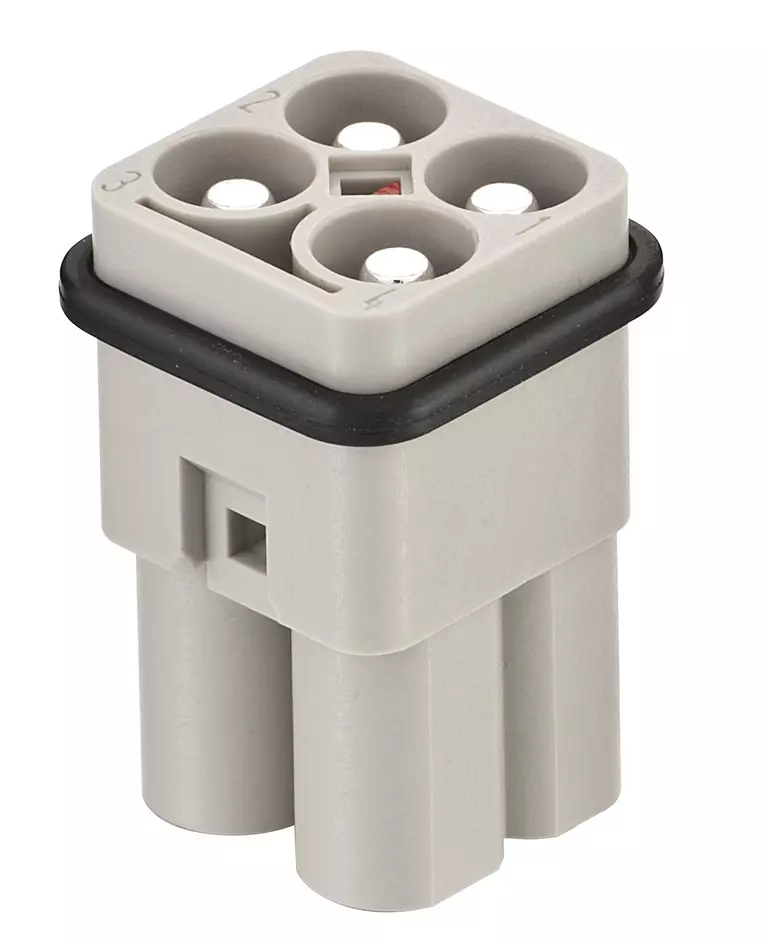

Han Q4/0 -M- Crimp

Article No.: 09 12 004 3051


Configurable
ConfigurableInserts

Han Q4/0 -M- Crimp

Article No.: 09 12 004 3051

to see prices and availability.

0
0

Properties Overview

Inserts Crimp termination Male Polycarbonate (PC) RAL 7032 (pebble grey) Rated current: ‌40 A Size: 3 A Contacts: 4 Conductor cross-section: 1.5 ... 10 mm²

Product Details


Category Inserts
Series Han® Q
Identification 4/0
Termination method Crimp termination
Gender Male
Size 3 A
Number of contacts 4
Details Please order crimp contacts separately.
Details Attention! Only for thermoplastic hoods/housings!
Conductor cross-section 1.5 ... 10 mm²
Rated current ‌ 40 A
Rated voltage ‌ 830 V
Rated impulse voltage 8 kV
Pollution degree 3
Rated voltage acc. to UL 600 V
Rated voltage acc. to CSA 600 V
Insulation resistance >1010 Ω
Limiting temperature -40 ... +125 °C
Mating cycles ≥ 500
Material (insert) Polycarbonate (PC)
Colour (insert) RAL 7032 (pebble grey)
Material flammability class acc. to UL 94 V-0
RoHS compliant
ELV status compliant
China RoHS e
REACH Annex XVII substances Not contained
REACH ANNEX XIV substances Not contained
REACH SVHC substances Not contained
California Proposition 65 substances Yes
California Proposition 65 substances Naphthalene
Fire protection on railway vehicles EN 45545-2 (2020-08)
Requirement set with Hazard Levels R22 (HL 1-3)
R23 (HL 1-3)
Packaging size 10
Net weight 10 g
Country of origin Romania
European customs tariff number 85366990
GTIN 5713140017146
ETIM EC000438
eCl@ss 27440205 Contact insert for industrial connectors
