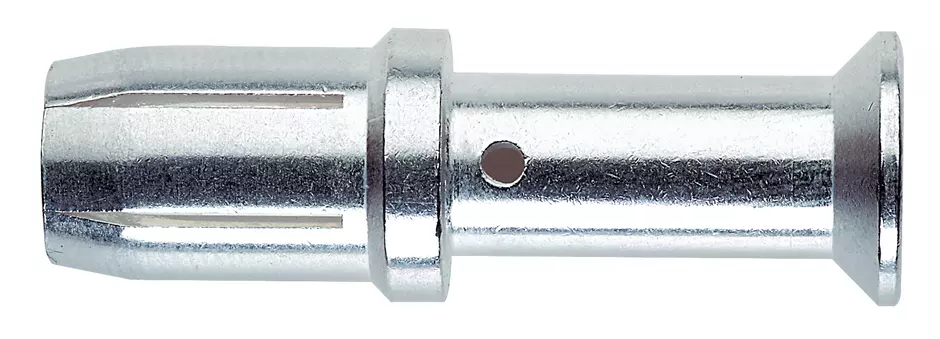

Han TC100 Buchsenkontakt 16sqmm

Article No.: 09 11 000 6216

Image is for illustration purposes only. Please refer to product description.

Crimp contact

Article No.: 09 11 000 6216

to see prices and availability.

to see prices and availability.

Crimp contact

Rated current: ≤100 A

Female

Copper alloy

Silver plated

Conductor cross-section: 16 mm²

Identification

Version

Technical characteristics

Material properties

Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
ECHA SCIP number	b51e5b97-eeb5-438b-8538-f1771d43c17d
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Specifications and approvals

Specifications	IEC 60664-1
Specifications	IEC 61984

Commercial data

Packaging size	10
Net weight	7.5 g
Country of origin	Germany
European customs tariff number	85359000
GTIN	5713140015302
eCl@ss	27440204 Contact for industrial connectors
ETIM	EC000796
UNSPSC 24.0	39121522
