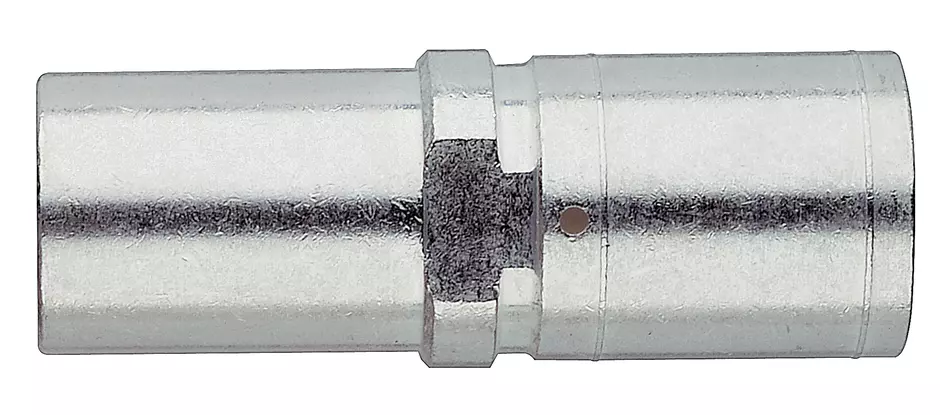

Han TC350 male contact 120mm²

Article No.: 09 11 000 6144

Image is for illustration purposes only. Please refer to product description.

Crimp contact

Article No.: 09 11 000 6144

to see prices and availability.

to see prices and availability.

Crimp contact

Rated current: ≤350 A

Male

Copper alloy

Silver plated

Conductor cross-section: 120 mm²

Identification

Version

Termination method	Crimp termination
Gender	Male
Manufacturing process	Turned contacts
Details	The vibration and shock resistance can only be met if the cables are fixed at an appropriate distance. Instructions for the spacing of strain relief can be found in the document in eCatalogue under the section Instructions.

Technical characteristics

Material properties

ECHA SCIP number	b51e5b97-eeb5-438b-8538-f1771d43c17d
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated

Specifications and approvals

Specifications	IEC 60664-1
Specifications	IEC 61984

Commercial data

European customs tariff number	85359000
Packaging size	1
Net weight	8.4 g
Country of origin	Germany
GTIN	5713140015166
eCl@ss	27440204 Contact for industrial connectors
ETIM	EC000796
UNSPSC 24.0	39121522
