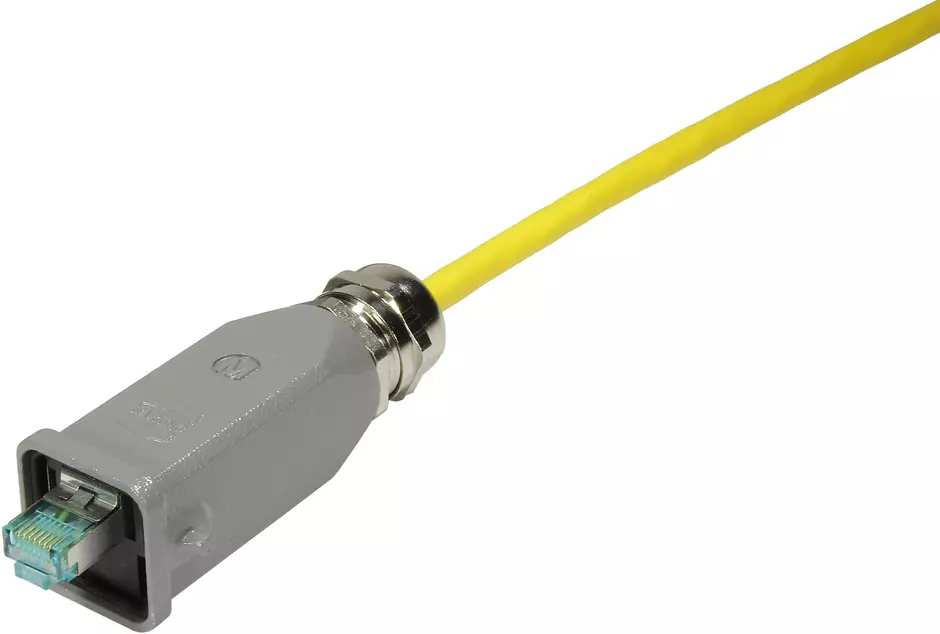

Han3A RJ45 GL Cat6A plug 8p met

Article No.: 09 45 115 1520

Image is for illustration purposes only. Please refer to product description.

Connectors

Article No.: 09 45 115 1520

to see prices and availability.

to see prices and availability.

Connectors

Cable connector

Piercing termination

Contacts: 8

Hood

Straight

Size: 3 A

Material: Zinc die-cast

Degree of protection: IP65, IP67

Identification

Version

Termination method	Piercing termination
Size	3 A
Shielding	Fully shielded, 360° shielding contact
Number of contacts	8
Pack contents	Connector insert
	Hoods / Housings
	Cable gland
	Assembly instructions

Technical characteristics

Conductor cross-section (mm²)	0.08 ... 0.22 mm² Stranded
Conductor cross-section (AWG)	AWG 28 ... AWG 24 Stranded
Wire outer diameter	≤1.05 mm
Limiting temperature	-40 ... +70 °C
Storage temperature	+5 ... +50 °C
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67
Cable diameter	5 ... 9 mm
Transmission characteristics	Cat. 6 Class E up to 250 MHz
Data rate	‌ 10 Mbit/s
	‌ 100 Mbit/s
	‌ 1 Gbit/s
	‌ 2.5 Gbit/s
	‌ 5 Gbit/s
	‌ 10 Gbit/s

Material properties

China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
	Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (hood/housing)	Zinc die-cast
Colour (hood/housing)	Grey

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	1
Net weight	100 g
Country of origin	Romania
GTIN	5713140058811
eCl@ss	27440113 Rectangular connectors (set)
ETIM	EC002636
UNSPSC 24.0	39121408
