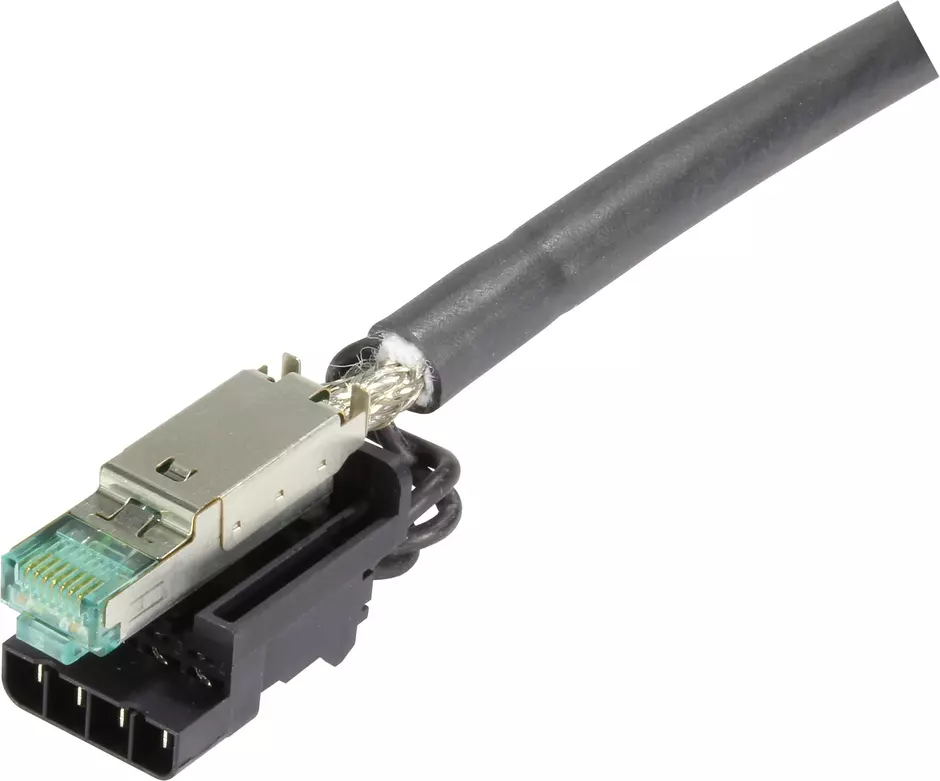

Han3A RJ45 Hybrid GL Cat6A insert 8+4p

Article No.: 09 45 100 1720

Image is for illustration purposes only. Please refer to product description.

Connectors

Article No.: 09 45 100 1720

to see prices and availability.

to see prices and availability.

Connectors

Cable connector

Size: 3 A

Contacts: 12

Conductor cross-section: 0.08 ... 0.22 mm² Data 1.5 mm² Power

Identification

Version

Size	3 A
Shielding	Fully shielded, 360° shielding contact
Number of contacts	12
Number of power contacts	4
Number of data contacts	8

Technical characteristics

Conductor cross-section (mm²)	0.08 ... 0.22 mm² Data
Conductor cross-section (mm²)	1.5 mm² Power
Conductor cross-section (AWG)	AWG 28 ... AWG 24 Data
Conductor cross-section (AWG)	AWG 16 Power
Wire outer diameter	≤1.05 mm (Data)
Wire outer diameter	≤2.75 mm (Power)
Rated voltage (data)	50 V AC
Rated voltage (data)	60 V DC
Rated voltage (power)	48 V DC
Rated current (power)	16 A
Rated current (data)	1.76 A
Limiting temperature	-40 ... +70 °C
Storage temperature	+5 ... +50 °C
Mating cycles	500
Transmission characteristics	Cat. 6_A Class E_A up to 500 MHz
Data rate	10 Mbit/s
	100 Mbit/s
	1 Gbit/s
	2.5 Gbit/s
	5 Gbit/s
	10 Gbit/s

Material properties

China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	10
Net weight	42.4 g
Country of origin	Romania
GTIN	5713140058712
eCl@ss	27440205 Contact insert for industrial connectors
ETIM	EC000438
UNSPSC 24.0	39121522
