M12-PFT-CRIMP-8P-YCOD-F-SHLD-1.0

Article No.: 21 43 369 5800

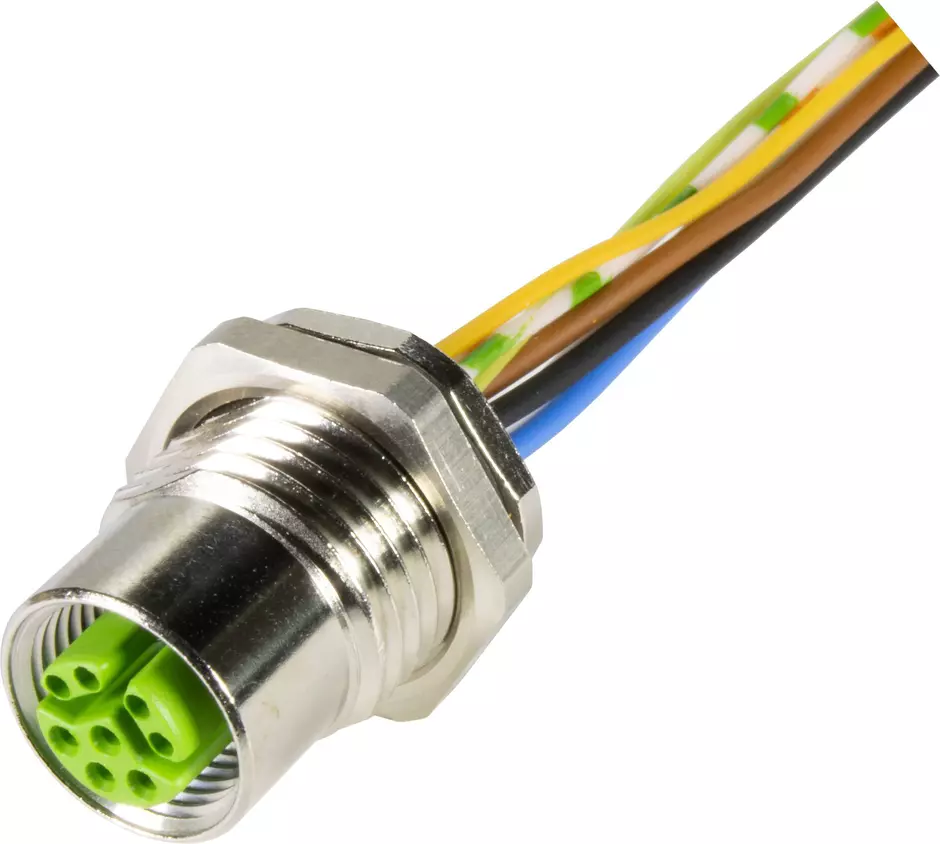

Image is for illustration purposes only. Please refer to product description.

Panel feed through

Article No.: 21 43 369 5800

to see prices and availability.

to see prices and availability.

Panel feed through

With conductors, for rear mounting

Cable length: 1 m

Identification

Version

Technical characteristics

Conductor cross-section (AWG)	AWG 26 Data
Conductor cross-section (AWG)	AWG 20 Power
Rated voltage	50 V AC/DC
Rated impulse voltage	0.8 kV
Pollution degree	3
Rated current (power)	6 A
Rated current (data)	0.5 A
Insulation resistance	>10⁸ Ω
Contact resistance	10 mΩ
Limiting temperature	-25 ... +85 °C
Tightening torque	‌0.6 Nm
Tightening torque	‌2 Nm Lock nut
Mating cycles	100
Degree of protection acc. to IEC 60529	IP67
Transmission characteristics	Cat. 5e
Overvoltage category	III
Isolation group	I (600 ≤ CTI)

Material properties

China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (insert)	Polyamide (PA)
Material (contacts)	Brass
Surface (contacts)	Au over Ni Mating side
Material (hood/housing)	Zinc die-cast

Specifications and approvals

PROFINET	Yes
Specifications	IEC 61076-2-113

Commercial data

European customs tariff number	85444290
Packaging size	1
Net weight	138.29 g
Country of origin	Germany
GTIN	5713140227866
eCl@ss	27440103 Sensor-actuator connector chassis (sensor technology acturator)
UNSPSC 24.0	39121413
