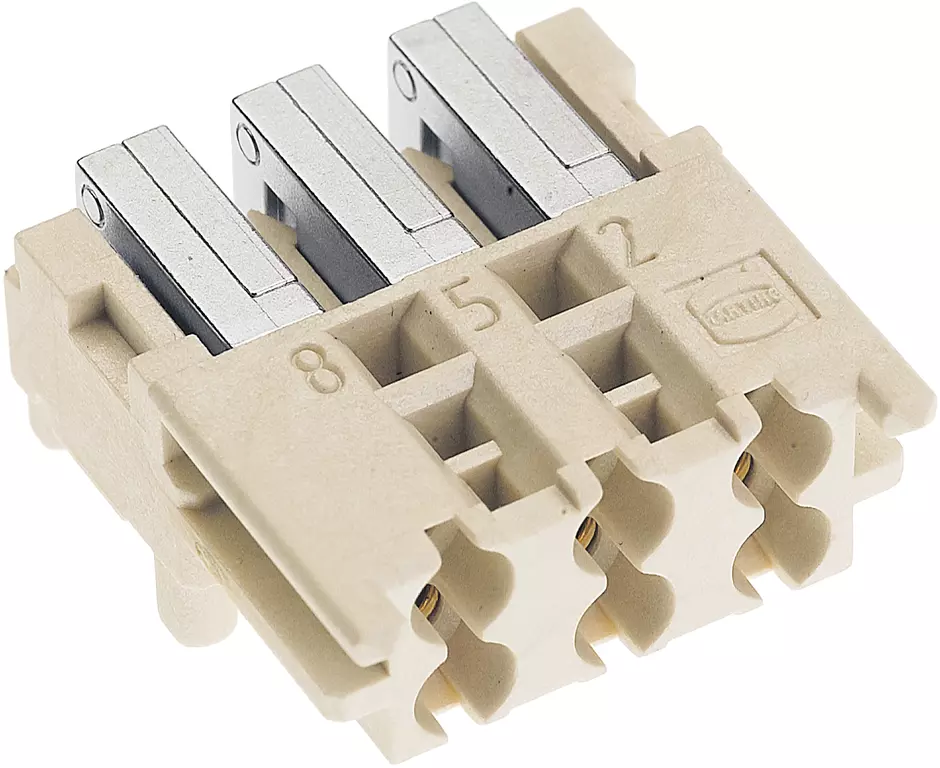

Mini Coax angled 6pak6 low profile

Article No.: 07 31 100 0027

Image is for illustration purposes only. Please refer to product description.

Male connector

Article No.: 07 31 100 0027

to see prices and availability.

to see prices and availability.

Male connector

Angled

Press-in termination

Contacts: 6

Copper alloy

Gold plated Mating side, Gold plated Termination side, centre pin, Nickel plated Termination side, grounding pin

Liquid crystal polymer (LCP)

Beige

This product is not orderable anymore.

Please contact your local distribution partner.

Identification

Version

Termination method	Press-in termination
Connection type	Motherboard to daughtercard
Number of contacts	6
Contact configuration	2, 5, 8

Technical characteristics

Contact rows	2
Contact spacing (termination side)	4.4 mm
Contact spacing (termination side)	6.25 mm
Data rate	≤ 2,500 MHz
Insulation resistance	> 5 x 10⁹ Ω
Contact resistance	≤12 mΩ Centre pin
Contact resistance	≤6 mΩ Grounding pin
Limiting temperature	-55 ... +125 °C
Insertion force	≤ 60 N
Withdrawal force	> 6 N
Mating cycles	≥ 500
Test voltage Ur.m.s.	1 kV
Isolation group	IIIa (175 ≤ CTI < 400)
Impedance	‌50 Ω
PCB thickness	≥1.6 mm

Material properties

Material (insert)	Liquid crystal polymer (LCP)
Colour (insert)	Beige
Material (contacts)	Copper alloy
Surface (contacts)	Gold plated Mating side
	Gold plated Termination side, centre pin
	Nickel plated Termination side, grounding pin
Material flammability class acc. to UL 94	V-0
RoHS	compliant with exemption
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
ELV status	compliant with exemption
China RoHS	50
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
REACH SVHC substances	Yes
REACH SVHC substances	Lead
California Proposition 65 substances	Yes
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel

Specifications and approvals

UL / CSA	UL 1977 ECBT2.E102079

Commercial data

Packaging size	1
Net weight	12.12 g
Country of origin	China
European customs tariff number	85366910
GTIN	5713140947986
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
