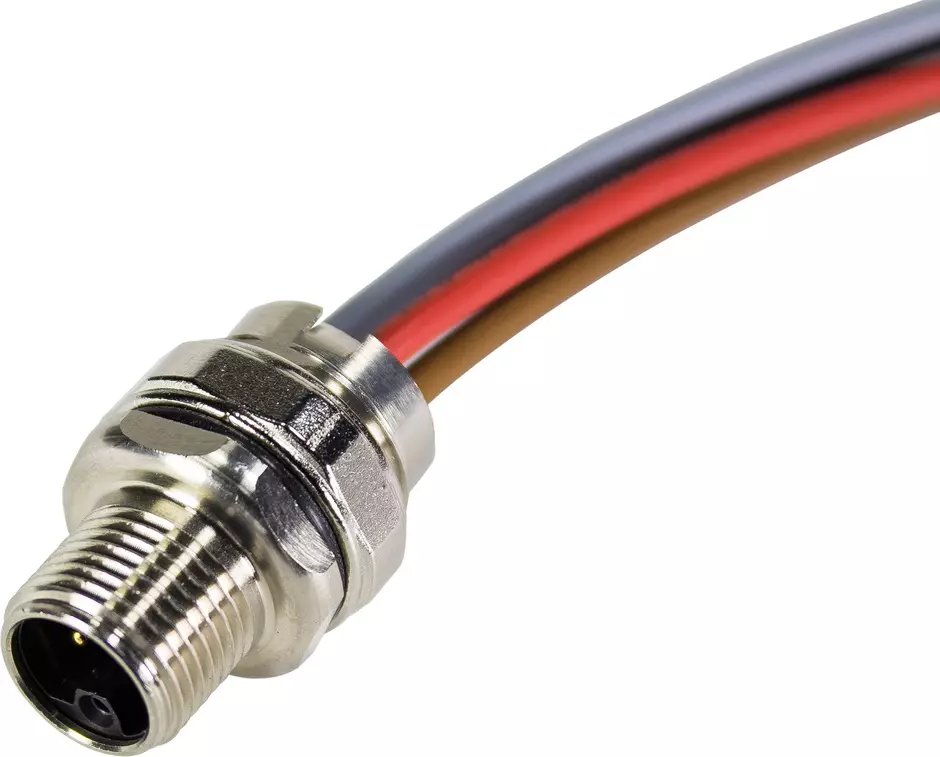

PFT male front L-coded 2.5mm² w/o FE

Article No.: 21 03 599 1506

Image is for illustration purposes only. Please refer to product description.

Panel feed through

Article No.: 21 03 599 1506

to see prices and availability.

to see prices and availability.

Panel feed through

With conductors, for front mounting

‌30 cm

Identification

Version

Technical characteristics

Conductor length	‌ 30 cm
Conductor cross-section (mm²)	2.5 mm²
Conductor cross-section (AWG)	AWG 14
Rated current	‌ 16 A
Rated voltage	63 V
Rated impulse voltage	1.5 kV
Pollution degree	3
Insulation resistance	>10⁸ Ω
Contact resistance	≤ 10 mΩ
Limiting temperature	-40 ... +85 °C
Tightening torque	‌2 Nm Lock nut
Wrench size	17
Wrench size	18
Mating cycles	≥ 100
Degree of protection acc. to IEC 60529	IP65 / IP67 mated condition
Overvoltage category	III
Isolation group	I (600 ≤ CTI)

Material properties

ECHA SCIP number	0d7d3693-d625-47ab-934a-d241bf72c86e
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
PFAS	No
Material (insert)	Polyamide (PA)
Colour (insert)	Black
Material (contacts)	Copper alloy
Surface (contacts)	Au over Ni Mating side
Material (hood/housing)	Zinc die-cast

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	1
Net weight	50 g
Country of origin	Romania
GTIN	5713140227606
eCl@ss	27440103 Sensor-actuator connector chassis (sensor technology acturator)
UNSPSC 24.0	39121413
