PP-V4-CC-P-48V/12A-4p-QL-P-2,5mm²

Article No.: 09 46 145 4510

New

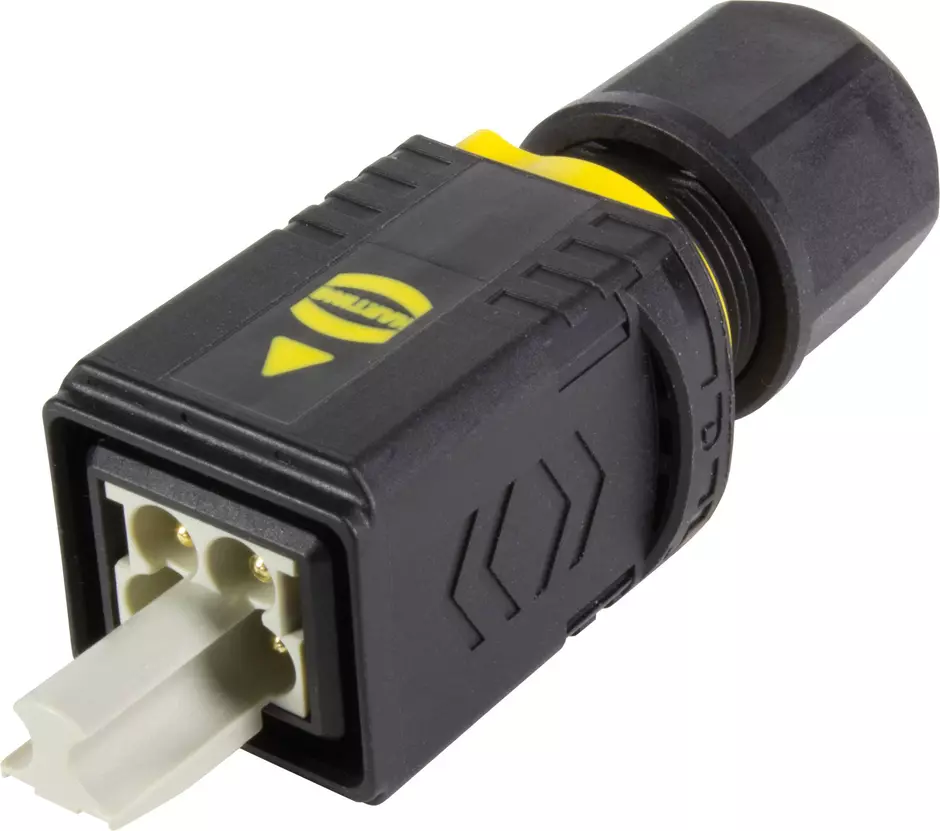

Image is for illustration purposes only. Please refer to product description.

New

Connectors

Article No.: 09 46 145 4510

to see prices and availability.

to see prices and availability.

Connectors

Connector sets

Han-Quick Lock® termination

Rated current: ‌12 A

Contacts: 4

PushPull

Material: Thermoplastic

Degree of protection: IP65, IP67

Identification

Version

Technical characteristics

Conductor cross-section (mm²)	[1,5] ... [2,5 mm²] Stranded
Wire outer diameter	3.4 mm
Rated current	12 A
Rated voltage	48 V
Rated impulse voltage	1.5 kV
Pollution degree	3
Limiting temperature	[-40] ... [+70 °C]
Tightening torque	[1,3] ... [‌1,5 Nm]
Mating cycles	750
Degree of protection acc. to IEC 60529	IP65
Degree of protection acc. to IEC 60529	IP67
Cable diameter	[4,5] ... [10 mm]

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
California Proposition 65 substances	Not contained
Material (hood/housing)	Thermoplastic
Colour (hood/housing)	Black
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	1
Country of origin	Romania
eCl@ss	27440114 Rectangular connector (for field assembly)
ETIM	EC002636
UNSPSC 24.0	39121408
