R 15-STI-C-0, 14-0,37 QMM

Article No.: 09 15 000 6107

Image is for illustration purposes only. Please refer to product description.

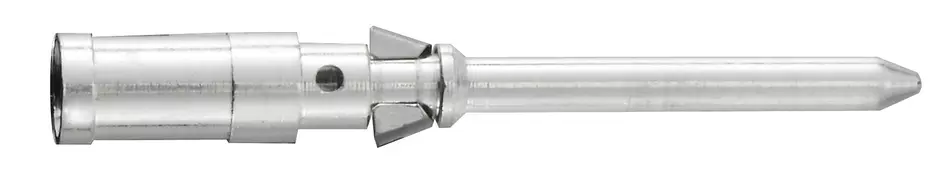

Crimp contact

Article No.: 09 15 000 6107

to see prices and availability.

to see prices and availability.

Crimp contact

Rated current: ≤10 A

Male

Copper alloy

Silver plated

Conductor cross-section: 0.14 ... 0.37 mm²

AWG 26 ... AWG 22

Identification

Version

Technical characteristics

Material properties

ECHA SCIP number	b51e5b97-eeb5-438b-8538-f1771d43c17d
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated

Specifications and approvals

Specifications	IEC 60664-1
Specifications	IEC 61984

Commercial data

European customs tariff number	85366990
Packaging size	100
Net weight	0.5 g
Country of origin	Germany
GTIN	5713140021860
eCl@ss	27440204 Contact for industrial connectors
ETIM	EC000796
UNSPSC 24.0	39121522
