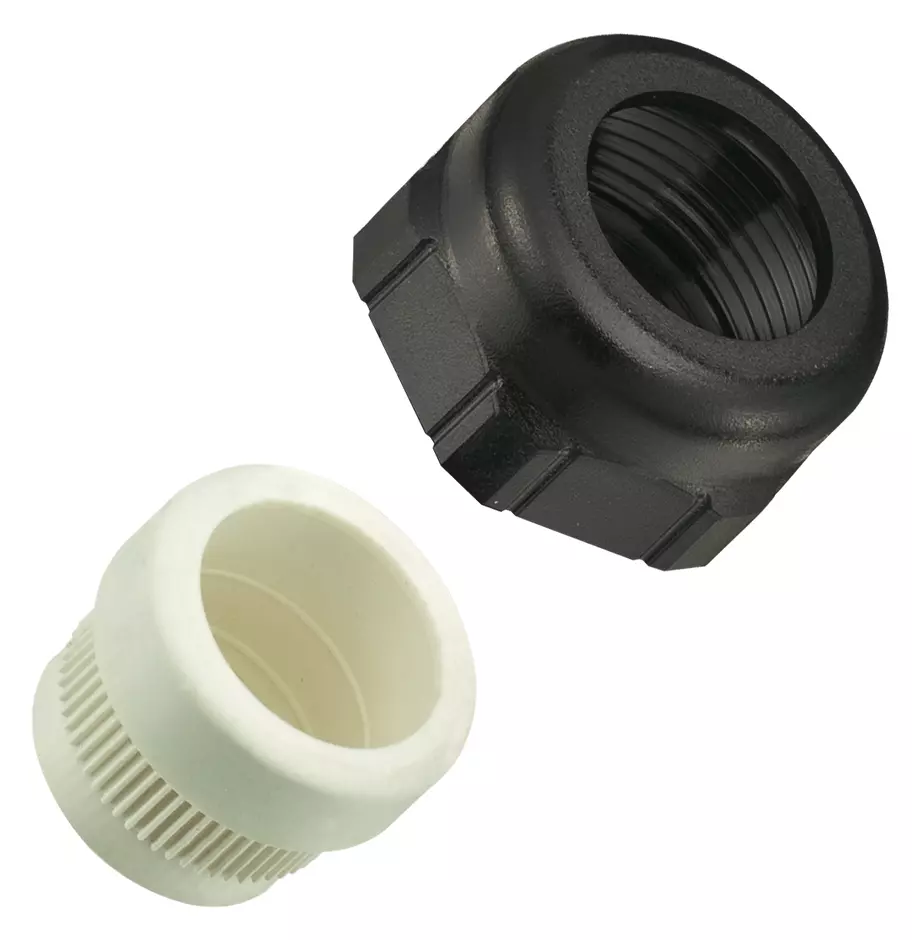

UNI-DICHT-HALB-Verschraubung Pg16

Article No.: 09 00 000 5058

Image is for illustration purposes only. Please refer to product description.

Cable gland

Article No.: 09 00 000 5058

to see prices and availability.

to see prices and availability.

Cable gland

for surface mounted housings

Clamping range: 11.5 ... 15.5 mm

Identification

Category	Accessories
Series of hoods/housings	Han-Compact®
Type of accessory	Cable gland
Description of the accessory	for surface mounted housings

Technical characteristics

Limiting temperature	-40 ... +100 °C
Tightening torque	≤6 Nm (depending on the cable and the seal insert used)
Wrench size	27
Degree of protection acc. to IEC 60529	IP65
Size	Pg 16
Clamping range	11.5 ... 15.5 mm

Material properties

China RoHS	e
RoHS	compliant
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant
California Proposition 65 substances	Not contained
REACH SVHC substances	2-(2'-Hydroxy-3'-tert-butyl-5'-methylphenyl)-5-chlorobenzotriazole (UV-326)
Material (cable glands)	Thermoplastic
Colour (cable gland)	Black

Commercial data

European customs tariff number	39174000
Packaging size	10
Net weight	6.5 g
Country of origin	Germany
GTIN	5713140001435
eCl@ss	27140807 Additional components cable gland
ETIM	EC003608
UNSPSC 24.0	39121431
