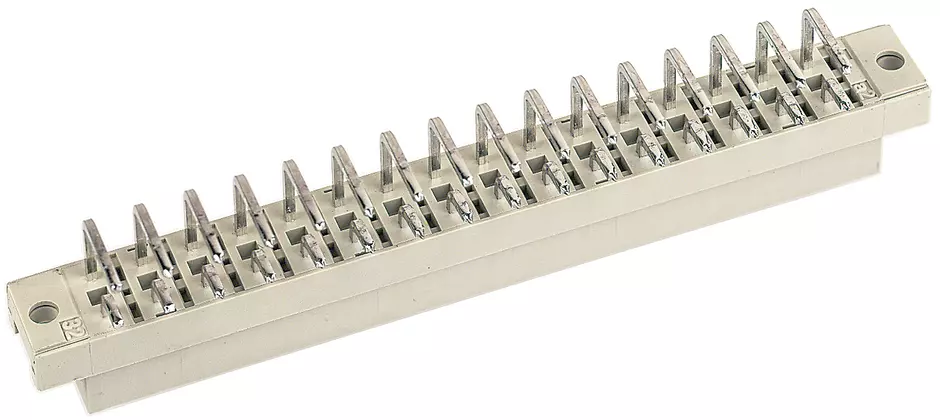

CONECTOR EURO F DIN 41612-D

Artigo nº.: 09 04 232 6826

A imagem é apenas para fins ilustrativos. Consulte a descrição do produto.

Female connector

Artigo nº.: 09 04 232 6826

para ver preços e disponibilidade.

para ver preços e disponibilidade.

Female connector

Wave soldering termination

Rated current: ‌6 A

Contacts: 32

Angled

Copper alloy

Noble metal over Ni Mating side, Sn over Ni Termination side

Performance level: 2, acc. to IEC 60603-2

Coding: Hole coding, Coding with loss of contacts

PCB fixing: With fixing flange

Thermoplastic resin, glass-fibre filled

RAL 7032 (pebble grey)

Identification

Version

Termination method	Wave soldering termination
Connection type	Motherboard to daughtercard
Connection type	Extender card
Number of contacts	32
Contact configuration	Rows a and c, positions 2, 4, ... , 30, 32
Coding	Hole coding
Coding	Coding with loss of contacts
PCB fixing	With fixing flange

Technical characteristics

Performance level	2
Performance level	acc. to IEC 60603-2
Hot plugging	No
Contact rows	2
Contact spacing (termination side)	5.08 mm
Contact spacing (mating side)	5.08 mm
Rated current	6 A
Rated current	Rated current measured at 20 °C, see derating curve for details
Clearance distance	3 mm
Creepage distance	3 mm
Insulation resistance	>10¹² Ω
Contact resistance	15 mΩ
Limiting temperature	[-55] ... [+125 °C]
Insertion force	40 N
Withdrawal force	40 N
Mating cycles	400
Test voltage Ur.m.s.	1.55 kV
Isolation group	IIIa (175 ≤ CTI < 400)

Material properties

Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
China RoHS	e
RoHS	compliant
REACH SVHC substances	Not contained
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
Requirement set with Hazard Levels	R26
ELV status	compliant
California Proposition 65 substances	Yes
California Proposition 65 substances	Nickel
Material (insert)	Thermoplastic resin, glass-fibre filled
Colour (insert)	RAL 7032 (pebble grey)
Material (contacts)	Copper alloy
Surface (contacts)	Noble metal over Ni Mating side
Surface (contacts)	Sn over Ni Termination side
Material flammability class acc. to UL 94	V-0

Specifications and approvals

Commercial data

European customs tariff number	85366990
Packaging size	20
Net weight	16.7 g
Country of origin	Germany
GTIN	5713140008557
eCl@ss	27460201 PCB connector (board connector)
ETIM	EC002637
UNSPSC 24.0	39121415
