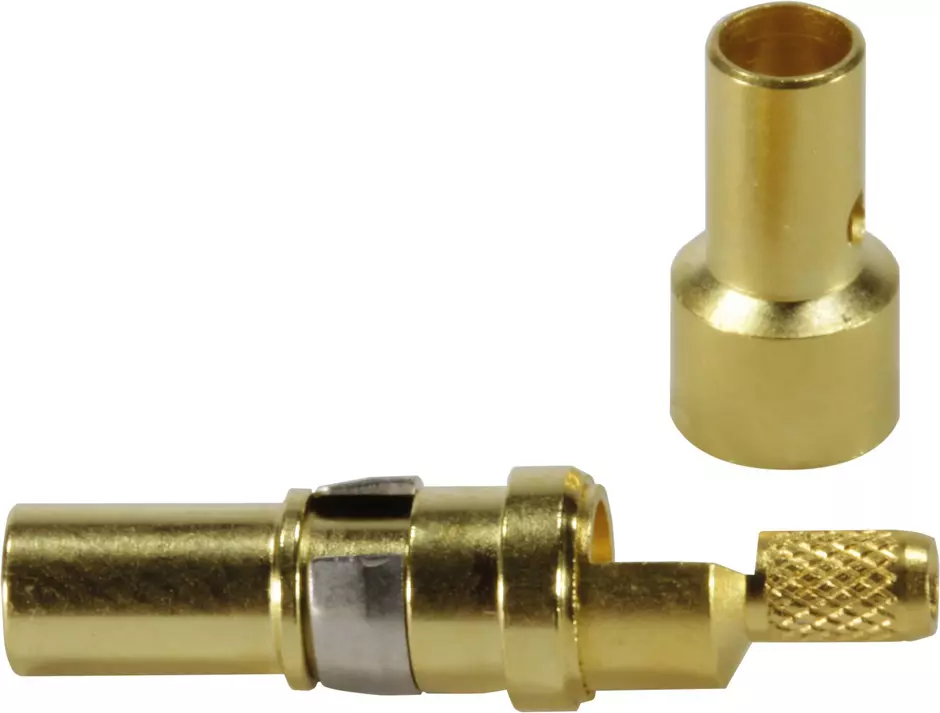

CONTATO FEMEA COAXIAL (75 OHM)

Artigo nº.: 09 03 000 6281

A imagem é apenas para fins ilustrativos. Consulte a descrição do produto.

Coaxial contact

Artigo nº.: 09 03 000 6281

para ver preços e disponibilidade.

para ver preços e disponibilidade.

Coaxial contact

Straight

Rated current: ≤0.4 A

Female contact for male connectors

Copper alloy

Noble metal over Ni Mating side

Esse produto não pode mais ser encomendado.

Você pode usar o sucessor.

Identification

Category	Contacts
Type of contact	Coaxial contact
Series	DIN 41612
Series	har-modular®
Description of the contact	Straight
Contacts for	DIN 41612 Type M
	DIN 41612 Type MH 21+5
	DIN 41612 Bauform M 0+2
	har-modular® M module, male, angled
	har-modular® M module, male, straight

Version

Termination method	Solder termination
Termination method	Solder/crimp termination
Gender	Female contact for male connectors
Manufacturing process	Turned contacts

Technical characteristics

Material properties

ECHA SCIP number	ecef7555-f643-4ceb-a337-fc54762297f1
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (contacts)	Copper alloy
Surface (contacts)	Noble metal over Ni Mating side
Material (locking)	Copper alloy

Specifications and approvals

Specifications	DIN 41626

Commercial data

European customs tariff number	85366990
Packaging size	1
Net weight	1.907 g
Country of origin	Czechia
GTIN	5713140004207
eCl@ss	27440204 Contact for industrial connectors
ETIM	EC000796
UNSPSC 24.0	39121522
