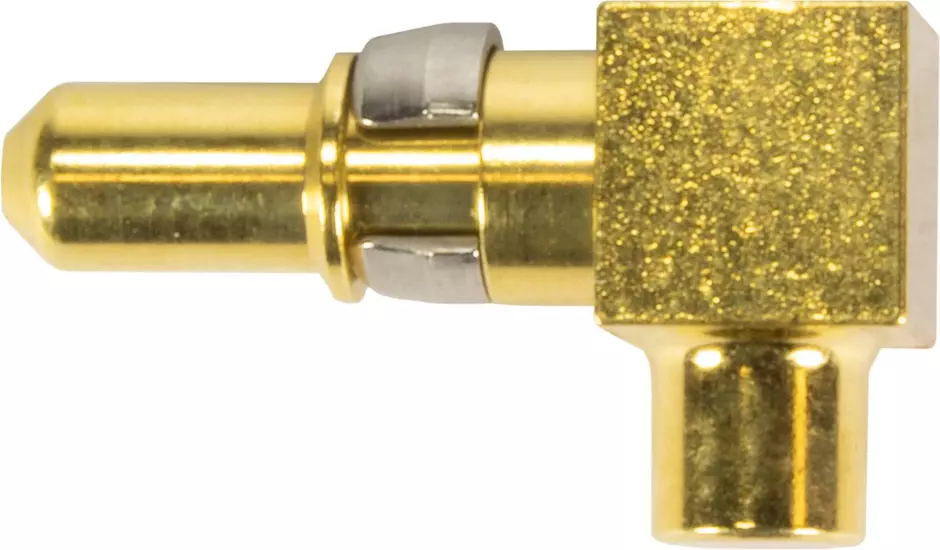

CONTATO MACHO

Artigo nº.: 09 03 000 6110

Configurável

A imagem é apenas para fins ilustrativos. Consulte a descrição do produto.

Configurável

PCB solder contact

Artigo nº.: 09 03 000 6110

para ver preços e disponibilidade.

para ver preços e disponibilidade.

PCB solder contact

Angled

Rated current: ≤40 A

Male contact for male connectors

Copper alloy

Noble metal over Ni Mating side

Identification

Category	Contacts
Type of contact	PCB solder contact
Series	DIN 41612
Series	har-modular®
Description of the contact	Angled
Contacts for	DIN 41612 Type M
	DIN 41612 Type MH 21+5
	DIN 41612 Bauform M 0+2
	har-modular® M module, male, angled

Version

Termination method	Solder termination
Gender	Male contact for male connectors
Connection type	Motherboard to daughtercard
	Mezzanine
	Extender card
	PCB to cable
Manufacturing process	Turned contacts

Technical characteristics

Material properties

ECHA SCIP number	ecef7555-f643-4ceb-a337-fc54762297f1
China RoHS	50
RoHS	compliant with exemption
REACH SVHC substances	Yes
REACH Annex XVII substances	Not contained
REACH ANNEX XIV substances	Not contained
ELV status	compliant with exemption
California Proposition 65 substances	Yes
RoHS exemptions	6(c): Copper alloy containing up to 4 % lead by weight
REACH SVHC substances	Lead
California Proposition 65 substances	Lead
California Proposition 65 substances	Nickel
Material (contacts)	Copper alloy
Surface (contacts)	Noble metal over Ni Mating side

Specifications and approvals

Specifications	DIN 41626

Commercial data

European customs tariff number	85366990
Packaging size	100
Net weight	3.335 g
Country of origin	Germany
GTIN	5713140003842
eCl@ss	27440204 Contact for industrial connectors
ETIM	EC000796
UNSPSC 24.0	39121522
